AutoBoom® XRT ABM Node Installation for Patriot/Trident

Note:  The ABM ECUClosed Electronic Control Unit is already installed on machines with factory 132’ and 135’ aluminum booms. The ABM ECU can be located in front of the rear axle on the left side of the machine.

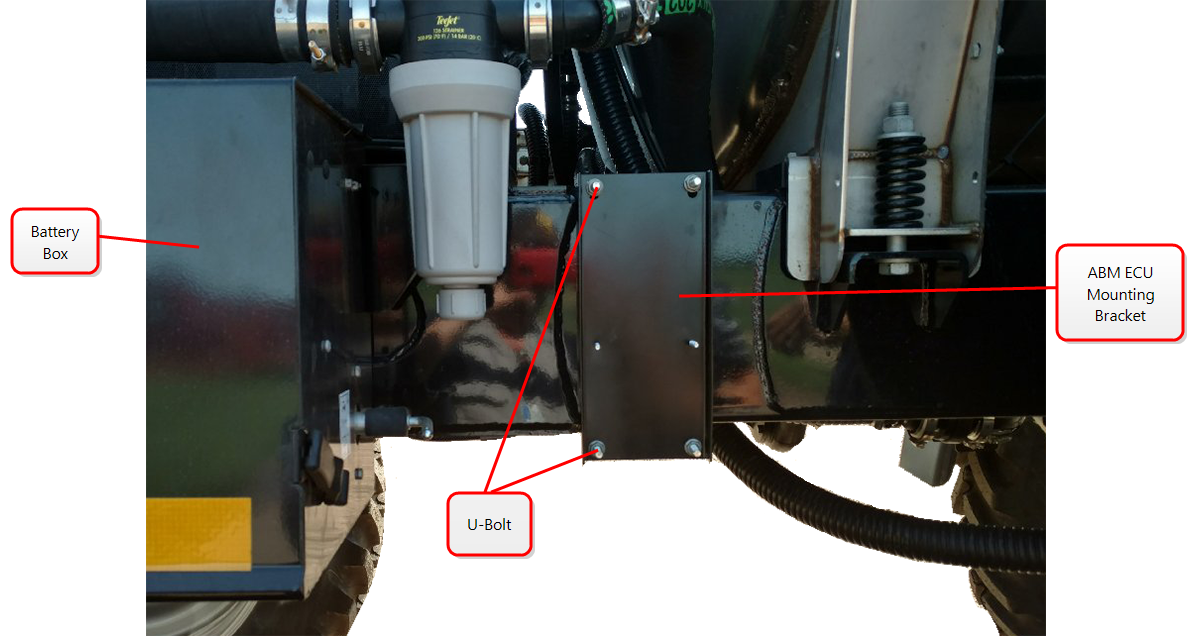

  1. Locate the machine battery box.

  2. Using the two provided angle brackets (P/N 107-0235-013) and 3/8” x 6-1/2” or 3/8” x 7-1/2” bolts, secure the AutoBoom® XRT node mounting bracket (P/N 107-0235-009) to the machines frame in front of the battery box.

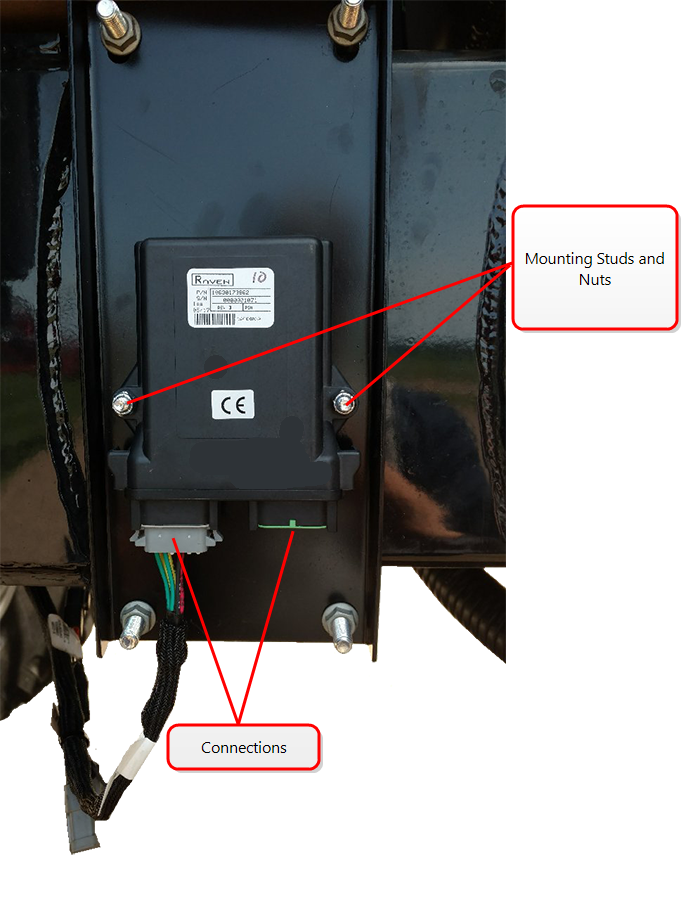

  3. Using the provided 1/4”-20 lock nuts, secure the AutoBoom® XRT node to the mounting studs on the AutoBoom® XRT mounting bracket.

    Note:  Position the node so the connections are facing down.

  1. Attach the ABM to the ABM mounting bracket (P/N 107-0235-033) using 1/4” - 2- nylon lock nuts. The connectors of the ABM should face away from the gusset.

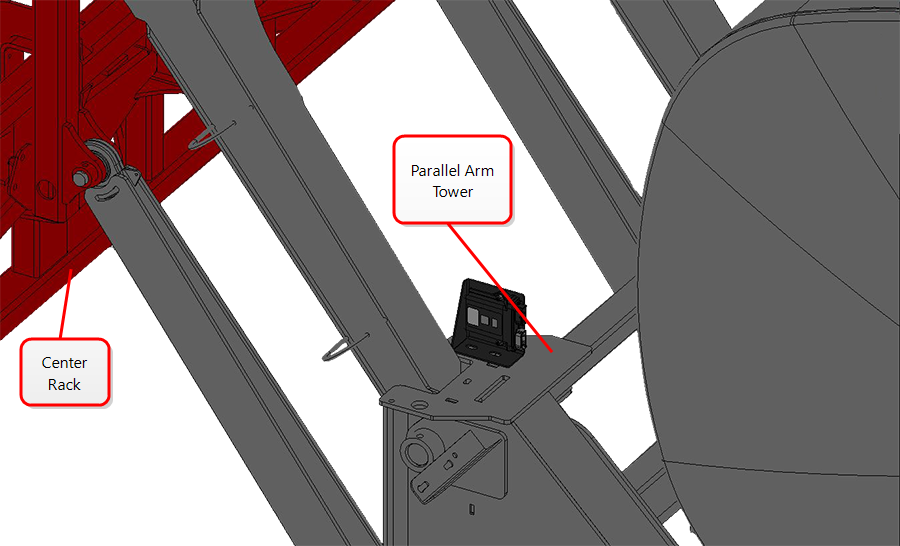

  2. Use the provided 7/16” x 1.75” bolts, washers, and nylon lock nuts to mount the ABM bracket to the sprayer chassis at the top of the parallel arm tower on the right hand side.

Last Revised: Jul 2024
