Install the Proximity Sensor for Patriot/Trident

Note:  The following steps are not required for machines with 120’, 132’, and 135’ boom configurations.

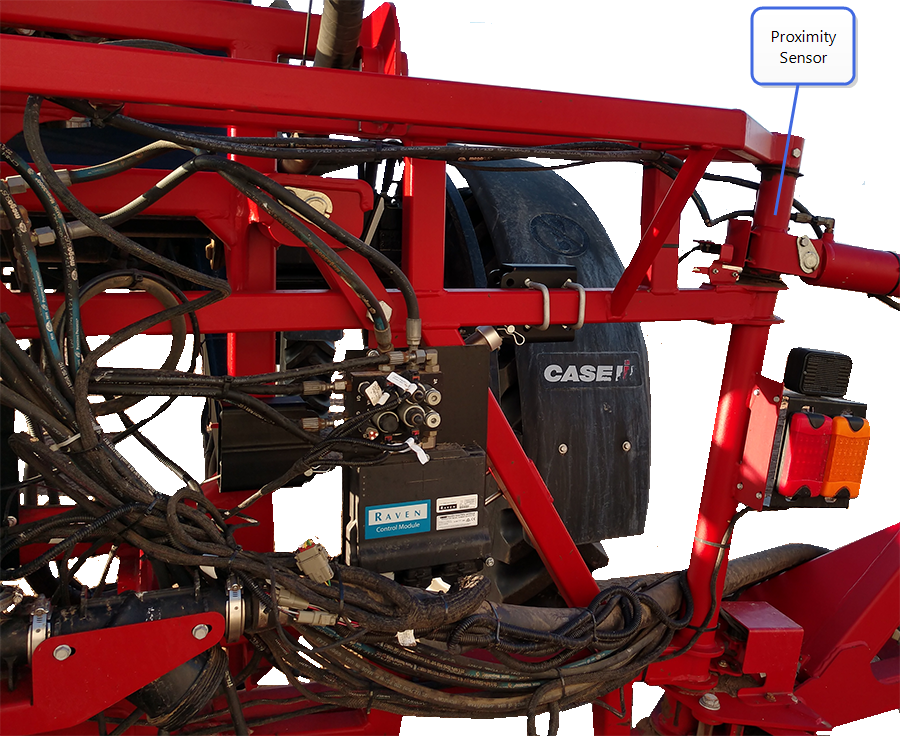

1. Install proximity sensors in the location shown in the image below (right side shown).

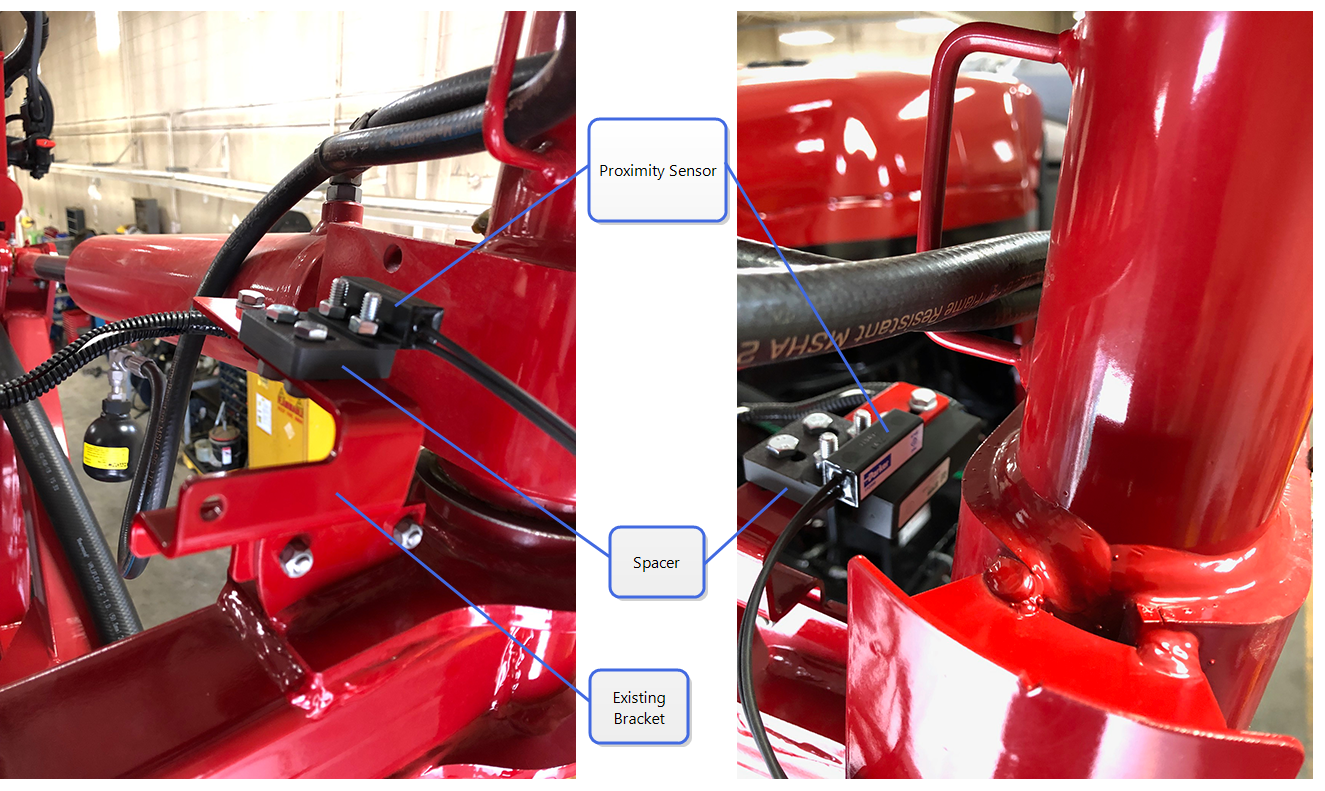

2. Attach the proximity sensors to the existing bracket using a spacer and the M6 hardware provided (see image below).
