Center Rack Rotary Sensor Installation for Patriot/Trident

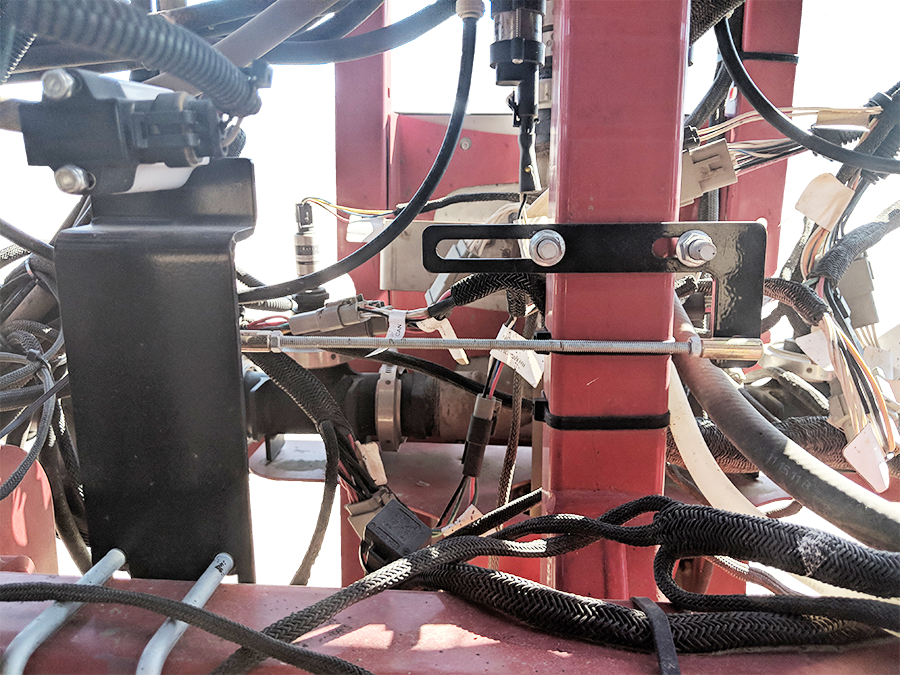

Locate the open position between the center rack and center frame to mount the rotary sensor.

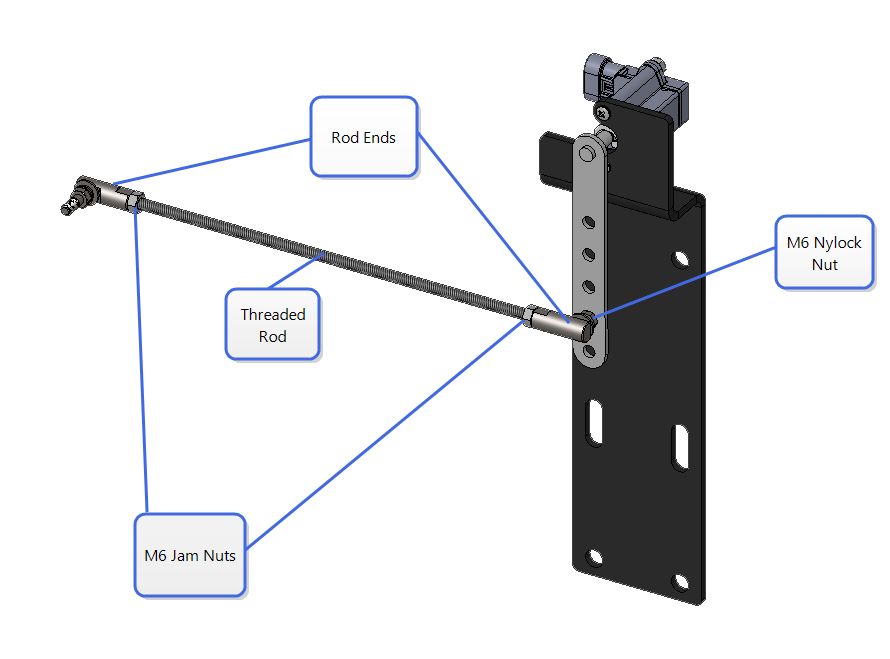

Assemble the items in above figure to the rotary sensor assembly labeled “Center Rack” as shown.

Using a provided 2-9/16” x 3-1/2” U-bolt, loosely install the rotary sensor strap bracket to the vertical tube on the front side of the center rack. The short leg of the bracket will be pointing down on the left side of the center.

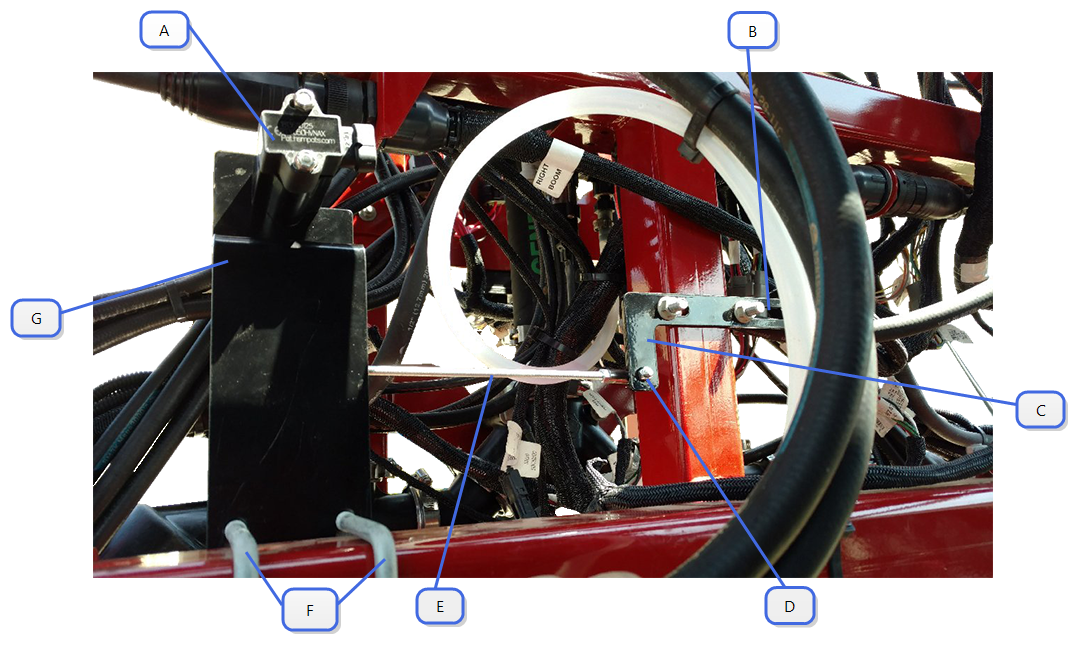

1. Rotary Sensor

2. 2 9/16" x 3-1/2" U-Bolt

3. Rotary Sensor Strap

4. M6 Nylock Nut

5. Rotary Sensor Link

6. 3 1/16" x 4" U-Bolts

7. Rotary Sensor Bracket

On the center frame, use two provided 3-1/16” x 4” U-bolts to loosely install the rotary sensor assembly labeled “Center Rack” to the lower horizontal tube positioned between the center rack and the center frame. The sensor mounts on the right side of the center. The connector on the sensor will point down the left side of the machine.

Install the rotary sensor link and rod end to the rotary sensor strap and secure with an M6 nylock nut.

Note:  The rotary sensor link should be installed so it is parallel to the ground.

Using two wrenches, secure the rotary sensor link.

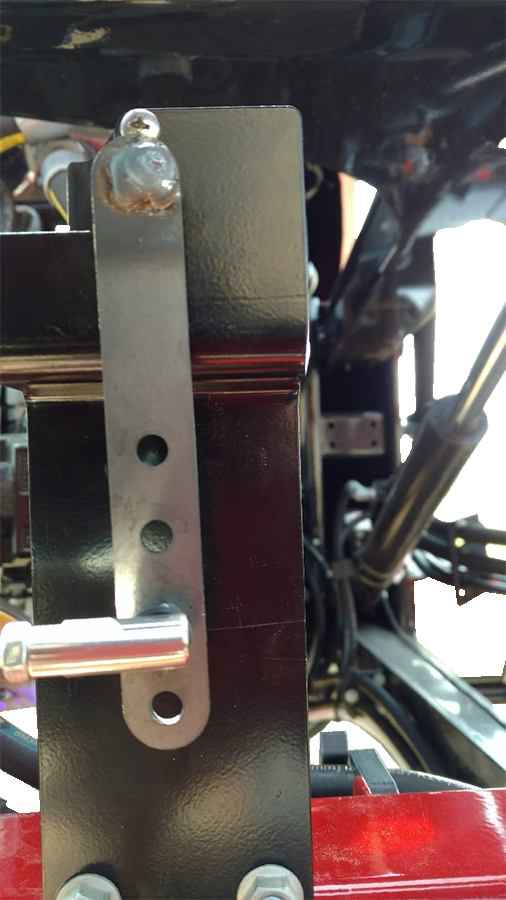

Adjust the rotary sensor bracket and the rotary sensor strap until the rotary sensor arm is vertical.

Tighten all hardware.

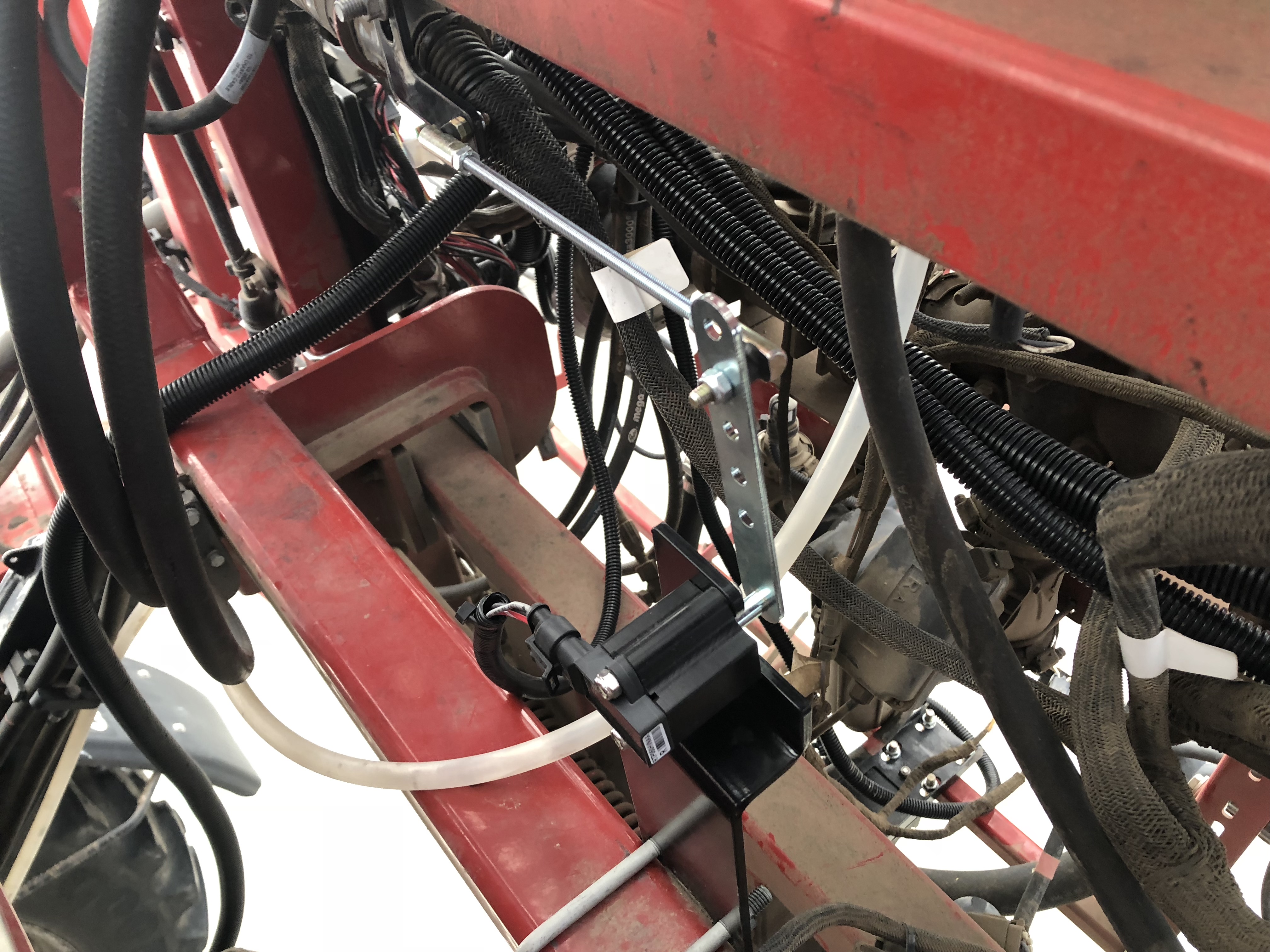

Locate the open position between the center rack and center frame to mount the rotary sensor.

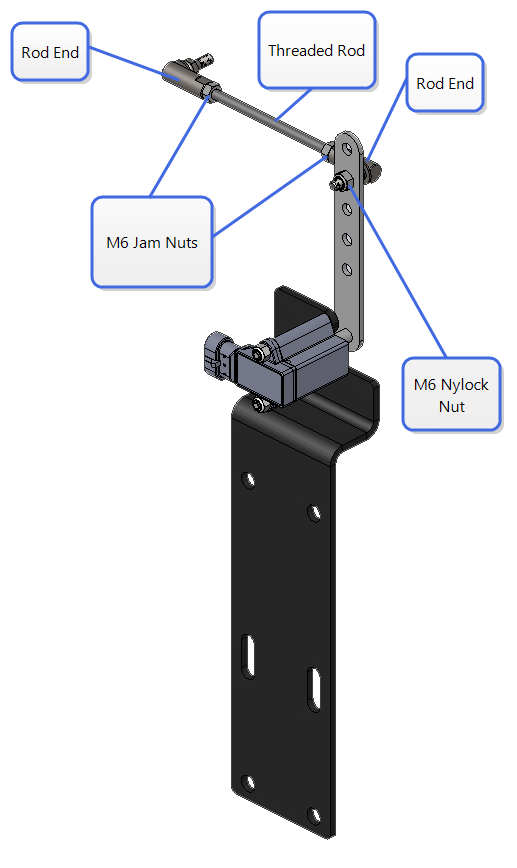

Assemble the items in above figure to the rotary sensor assembly labeled “Center Rack 90/100 FT” as shown.

Using a provided 2-9/16” x 3-1/2” U-bolt, loosely install the rotary sensor strap bracket to the upper horizontal tube that pivots (see image below).

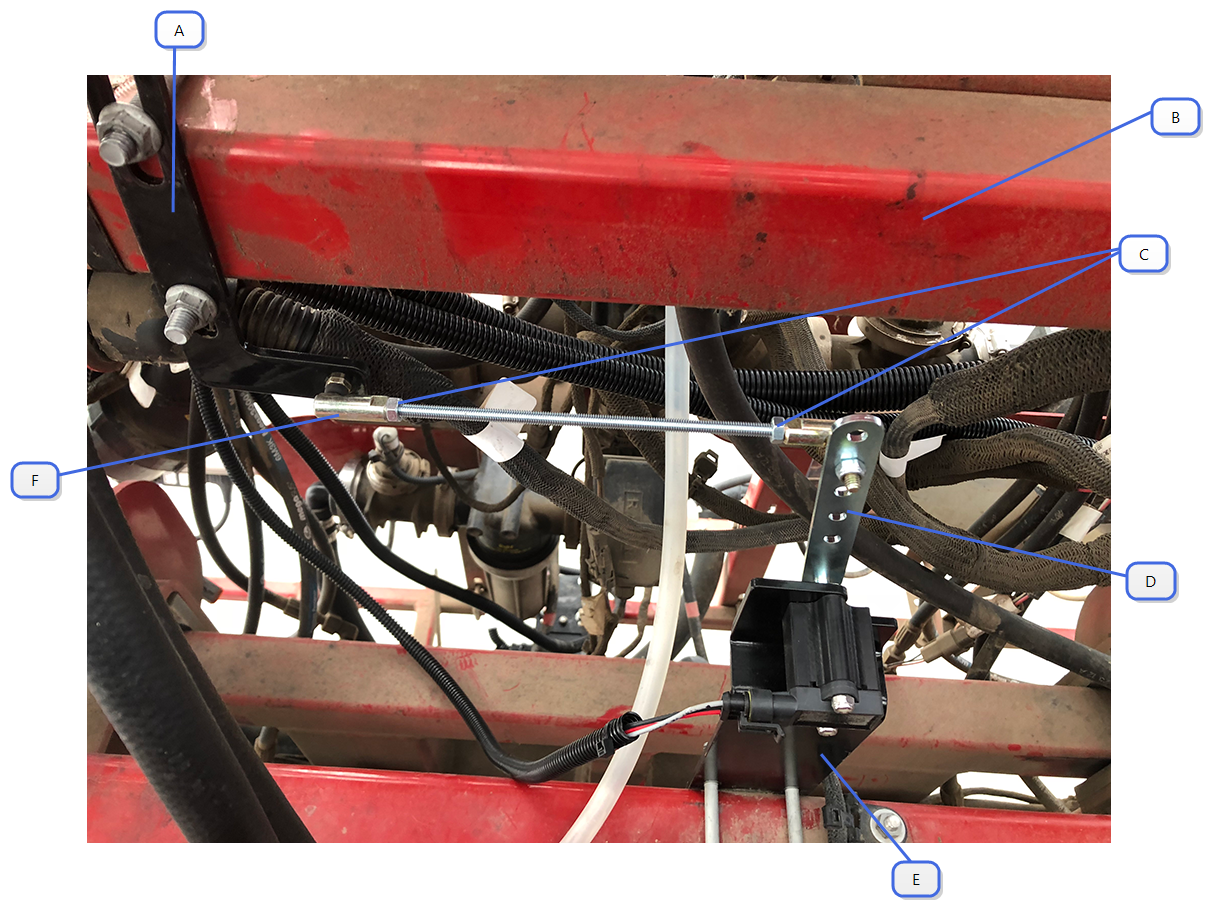

1. Rotary Strap

2. Upper Horizontal Tube

3. Jam Nuts

4. Rotary Sensor Arm

5. Rotary Sensor Bracket

6. Rod End

On the center frame, use two provided 3-1/16” x 4” U-bolts to loosely install the rotary sensor assembly labeled “Center Rack 90/100 FT” to the lower horizontal tube positioned between the center rack and the center frame. The sensor mounts on the right side of the center.

Install the rotary sensor link and rod end to the rotary sensor strap and secure with an M6 nylock nut.

Adjust the rotary sensor bracket and the rotary sensor strap until the rotary sensor arm is roughly in a vertical orientation.

Tighten all hardware.
