ABM Node Installation for Fendt RoGator 900 Series

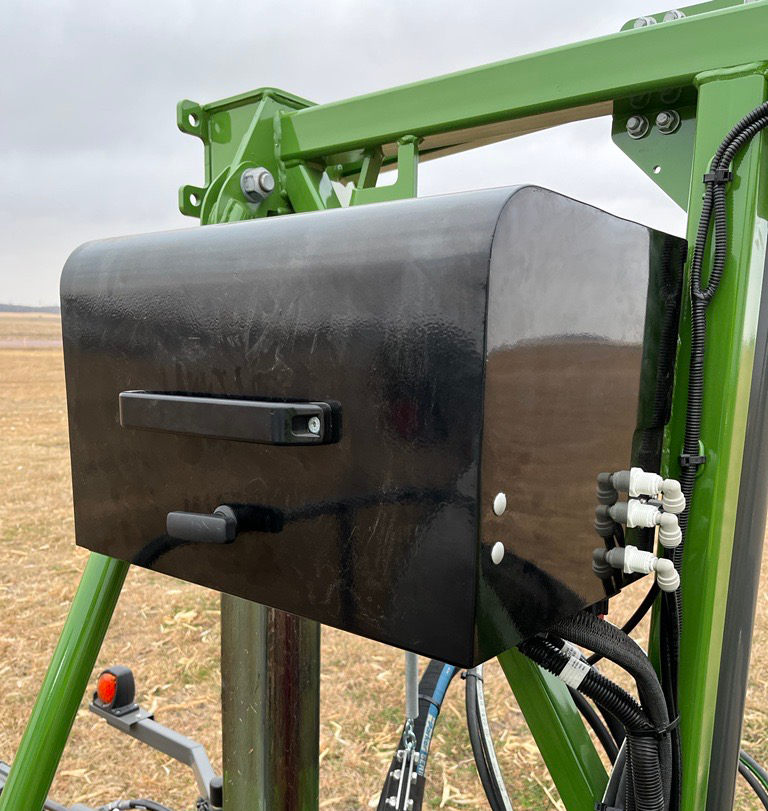

1. Locate the electrical compartment on the rear catwalk of the sprayer and remove the cover.



2. Remove the two bolts securing the fuse box bracket to the machine. This allows access to the ABM mounting location.



3. Use the two 1/4-20 x 1.25" nuts and bolts provided in the kit to mount the ABM node.

4. Connect the two loose 12-pin DTM connectors into the ABM node.



5. Using the previously removed screws, reinstall the fuse box bracket.

6. Replace the cover on the electrical box.
