Connect the ABM/REM Harness for RoGator

Note:  While making the following connections, be aware of the cable routing and avoid cable pinch points and other issues.

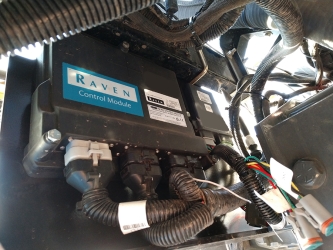

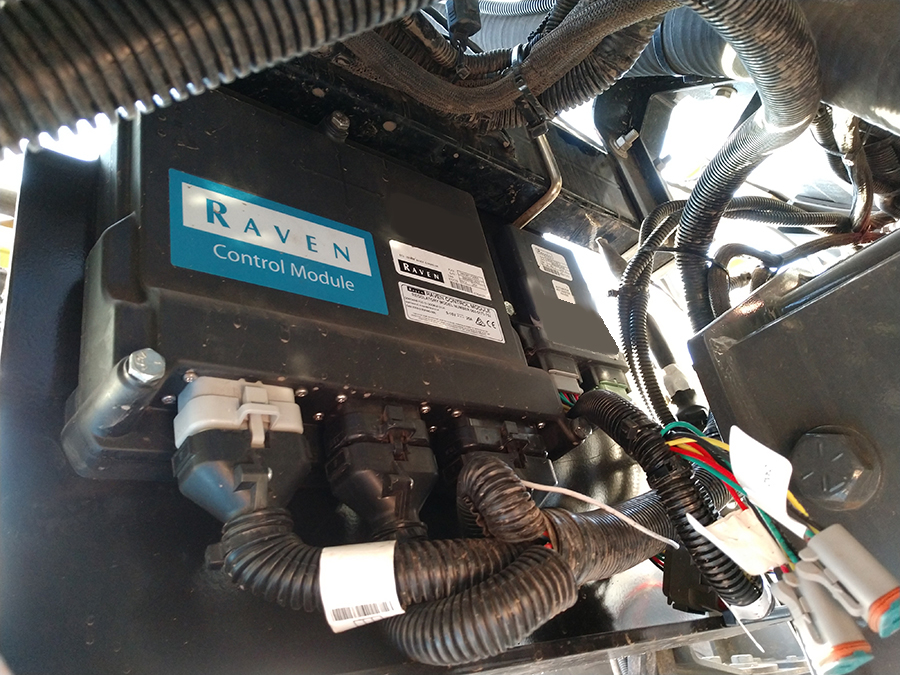

  1. Insert the gray 23-pin plug on the ABM/REMClosed Raven Expansion Module cable (P/N 115-0235-109) to the mating connector on the bottom of the REM node.

  2. Insert the black 23-pin plug on the AutoBoom® XRT cable to the mating connector on the bottom of the REM node.

  3. Insert the black 35-pin plug on the AutoBoom® XRT cable to the mating connector on the bottom of the REM node.

  4. Insert the connector labeled ABM to the AutoBoom® XRT node.

  5. Use the provided 12-pin green DTM plug to protect the unused connector of the ABM node.

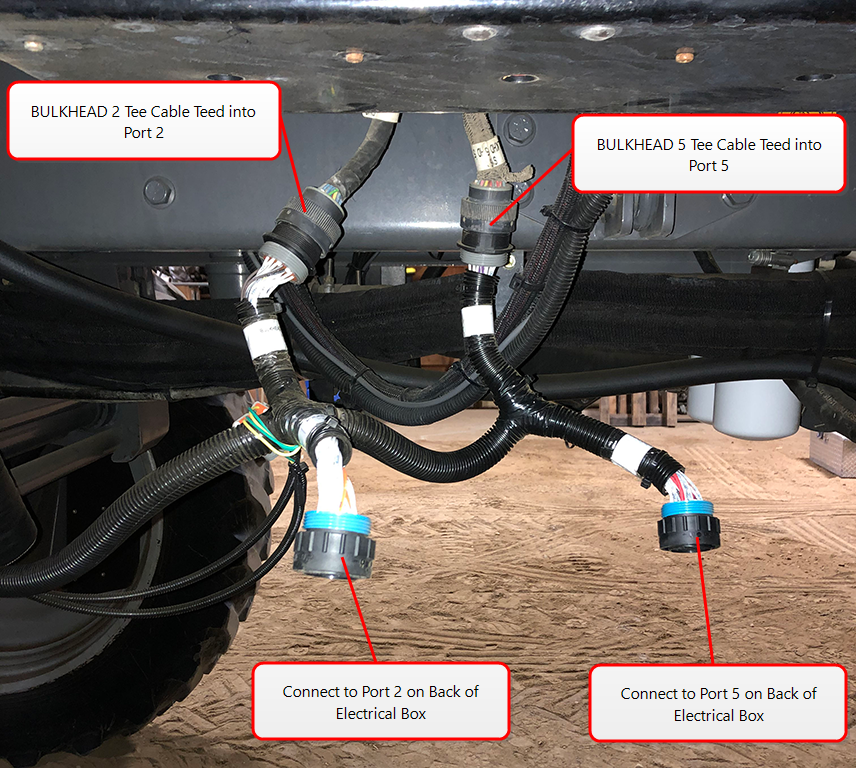

  6. Disconnect the Bulkhead Connector 2 from port 2 on the back of the electrical box and connect it to the BULKHEAD 2 ABM/REM Tee cable.

  7. Connect the other end of the bulkhead 2 tee back into port 2 on the back of the electrical box.

  8. Disconnect the Bulkhead Connector 5 from port 5 on the back of the electrical box.

  9. Remove the nut securing the bulkhead 5 plug to the electrical box.

  10. Access the inside of the electrical box and locate the bulkhead 5 plug.

  11. Install the Chassis Adapter cable (P/N 115-0235-108) bulkhead plug into the open location on the back of the electrical box and secure with a nut.

  12. Connect the other end of the bulkhead 5 tee back into the plug now in port 5 on the back of the electrical box.

  13. Plug the machines bulkhead 5 connector into the mating connector on the Chassis Adapter cable.

  14. Install the ground and power ring terminals to the power and grounds studs on the right wall of the electrical box.

  15. Locate the INJECTION LOGIC CONNECTOR on the inside of the electrical box.

    1. If there isn’t a cable connected to the INJECTION LOGIC CONNECTOR, plug the end into the LOGIC PWR tee connector on the 115-0235-162 cable.

    2. If there is a cable connected to the INJECTION LOGIC CONNECTOR, disconnect the existing cable and install the LOGIC PWR tee cable between the existing connections.

      Note:  If the machine already has AutoBoom® installed, please remove the AutoBoom® tee from the AUTOBOOM TIP CONTROL plugs.

  16. Install the RESISTOR BLOCK cable (P/N 115-0235-118) to the 6-pin plug on the AutoBoom® XRT cable.

  17. Locate the RoGator C Valve cable (P/N 115-0235-112).

  18. Connect the plug labeled DAMPER 1 to the mating receptacle on the right damper.

  19. Connect the plug labeled DAMPER 2 to the mating receptacle on the left damper.

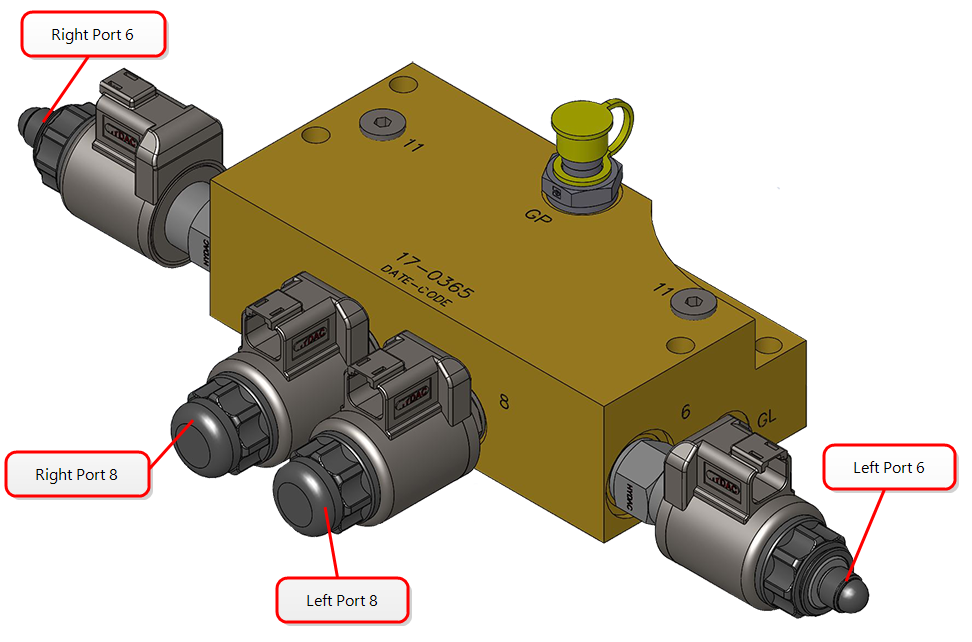

  20. Connect the LEFT SOLENOID plug on the AutoBoom® XRT cable to the left port 8 on the AutoBoom® XRT valve.

  21. Connect the RIGHT SOLENOID plug on the AutoBoom® XRT cable to the right port 8 on the AutoBoom® XRT valve.

  22. Connect the LEFT PROP plug on the AutoBoom® XRT cable to left port 6 on the AutoBoom® XRT valve.

  23. Connect the RIGHT PROP plug on the AutoBoom® XRT cable to right port 6 on the AutoBoom® XRT valve.

  24. Connect the 12-pin receptacle on the valve harness to the existing machine plug labeled X5033 behind the valve.

    Note:  The ACCUMILATOR POWER connector is not used on this installation.
