Kits for RoGator

This section contains a list of kits available depending on machine features. For a full list of kit contents, refer to the specific kits numbers listed below.

Model Year	Model	Series	Boom Material and Length	Hydraulics	Tree	Kit Numbers
2012-2017	AGCO RoGator	900, 900B 1100, 1100B 1300, 1300B	Steel 90'/100'	Yes	Large	117-0237-020
					Small	117-0237-021
			Steel 120'	Yes	Large	117-0237-022
			Steel 90'/100'	No	Large	117-0237-023
					Small	117-0237-024
			Steel 120'	No	Large	117-0237-025

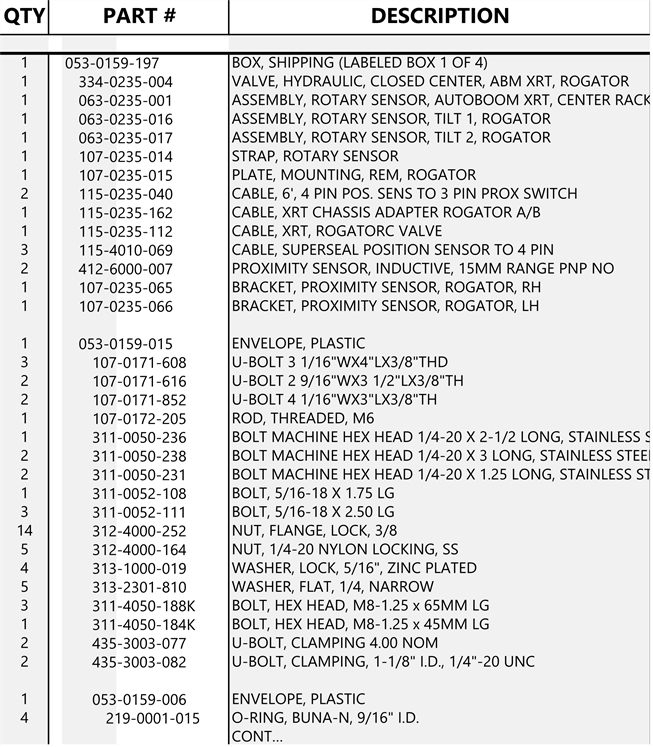

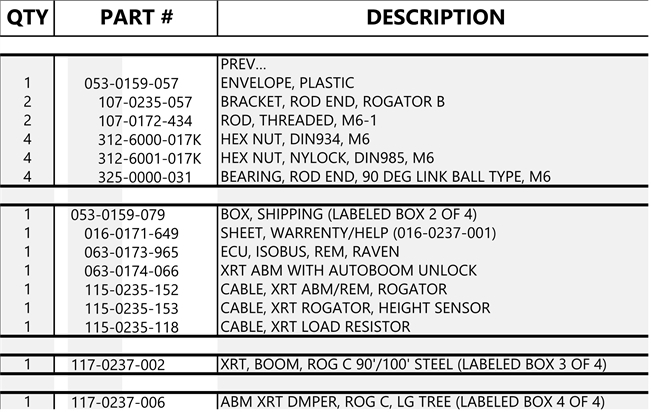

• AutoBoom® XRT Kit for AGCO RoGator, Large Tree, 90’/100’ Steel Boom (P/N 117-0237-020 Rev. A)

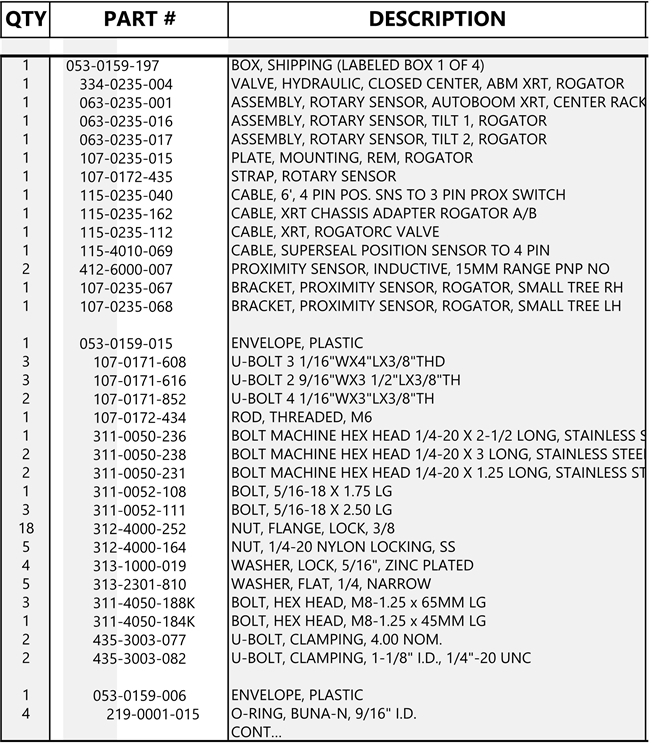

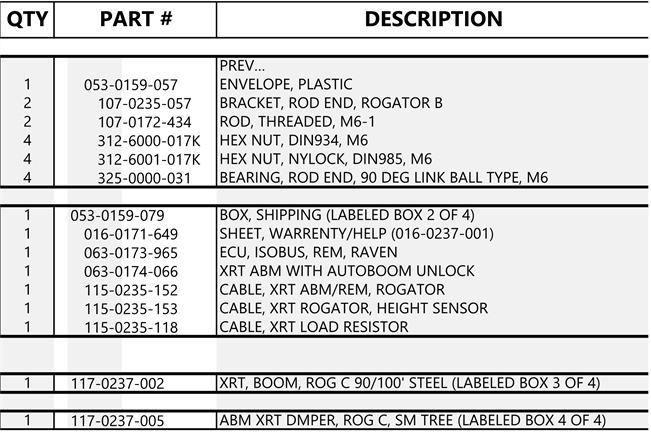

• AutoBoom® XRT Kit for AGCO RoGator, Small Tree, 90’/100’ Steel Boom (P/N 117-0237-021 Rev. A)

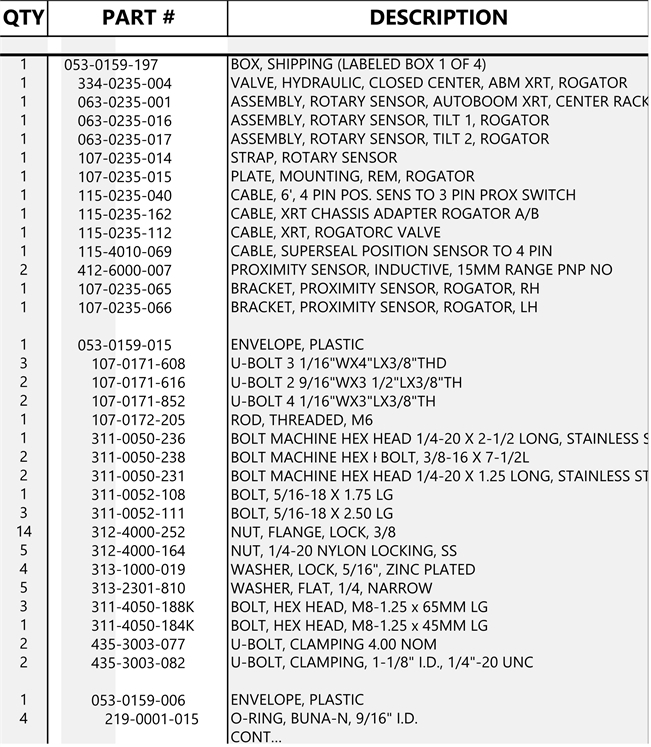

• AutoBoom® XRT Kit for AGCO RoGator, Large Tree, 120’ Steel Boom (P/N 117-0237-022 Rev. A)

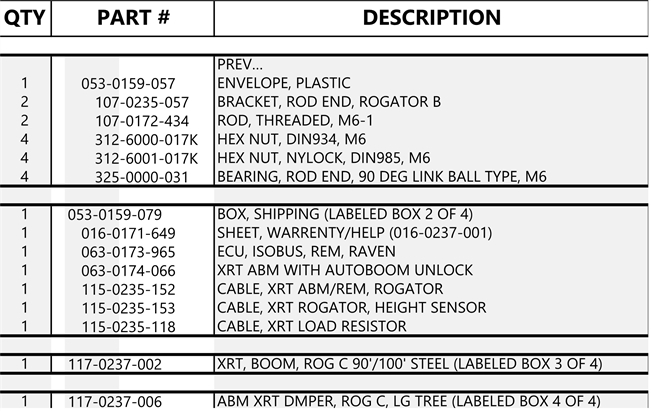

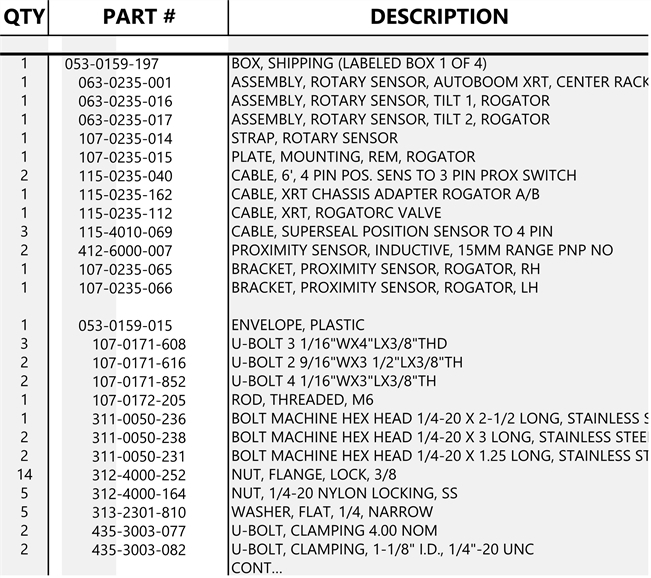

• AutoBoom® XRT Kit for AGCO RoGator, Large Tree, 90’/100’ Steel Boom, No Hydraulics (P/N 117-0237-023 Rev. A)

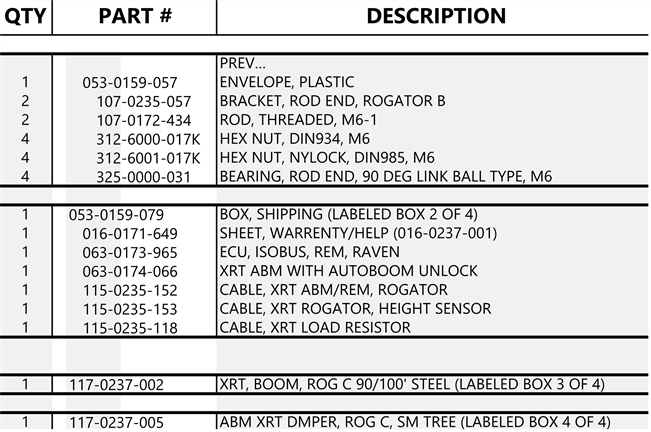

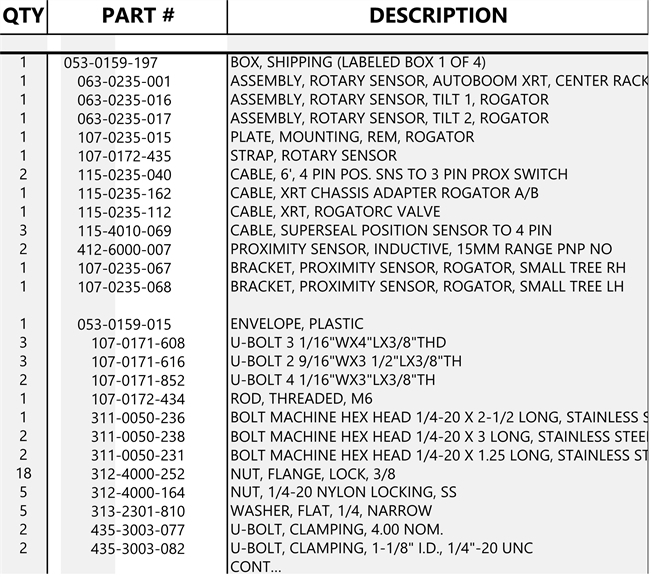

• AutoBoom® XRT Kit for AGCO RoGator, Small Tree, 90’/100’ Steel Boom, No Hydraulics (P/N 117-0237-024 Rev. A)

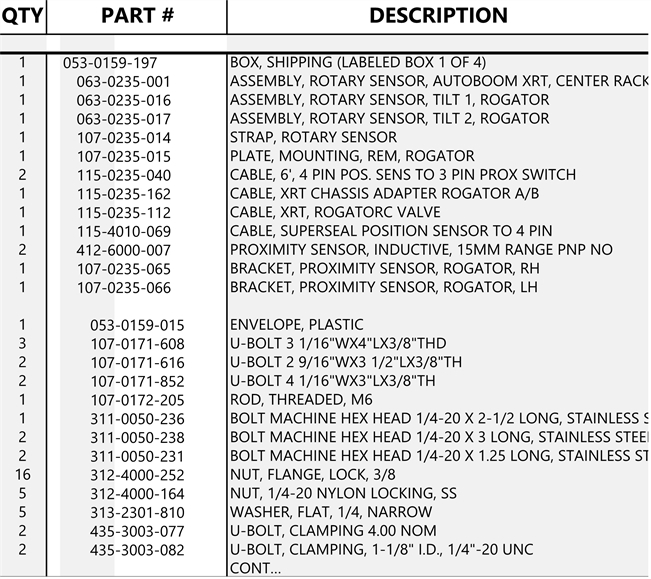

• AutoBoom® XRT Kit for AGCO RoGator, Large Tree, 120’ Steel Boom, No Hydraulics (P/N 117-0237-025 Rev. A)





Last Revised: Jul 2024
