for RoGator C
This section contains a list of kits available depending on machine features. For a full list of kit contents, refer to the specific kits numbers listed below.
| Model Year | Model | Series | Boom Material and Length | Hydraulics | Tree | Kit Numbers |
|---|---|---|---|---|---|---|

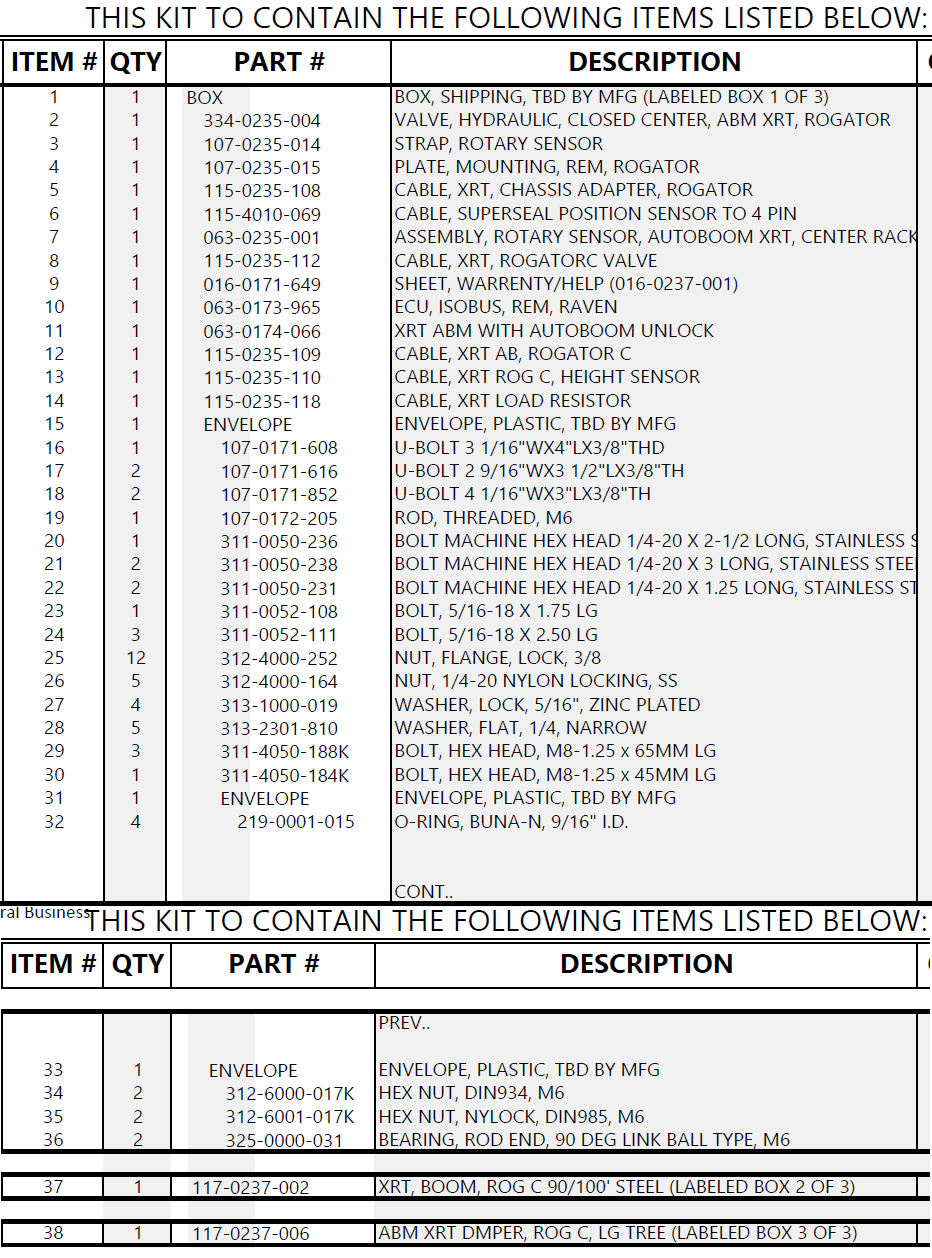

| 2018-2021 | AGCO RoGator | C | Steel 90'/100' | Yes | Large | 117-0237-040 |

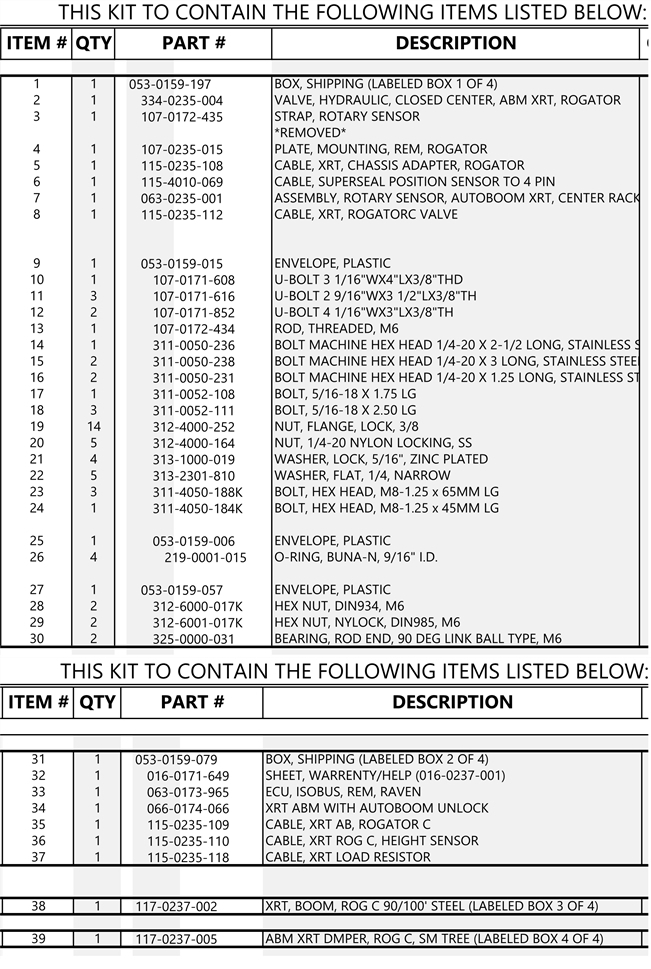

| Small | 117-0237-041 | |||||

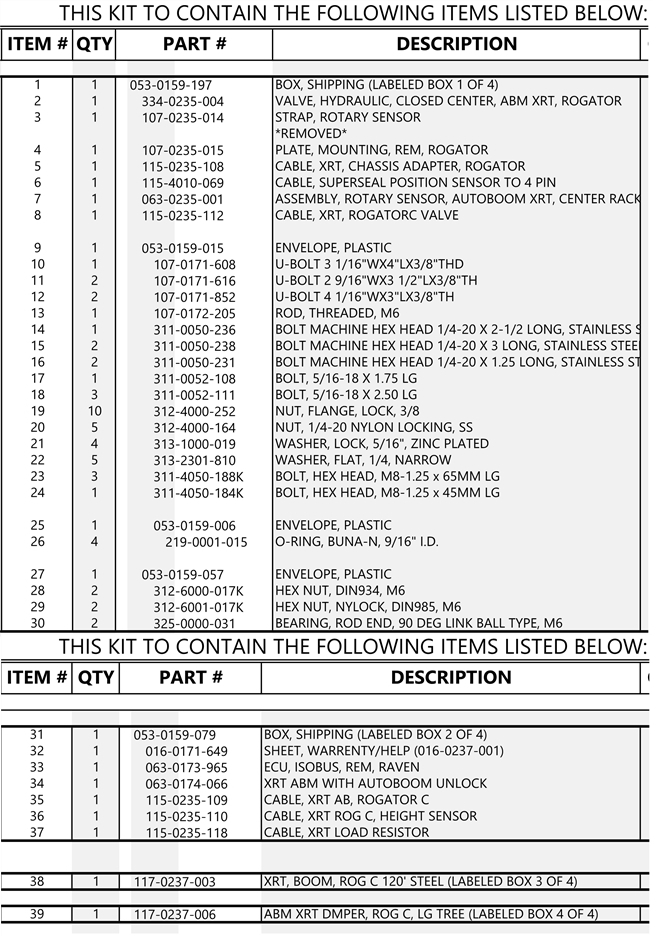

| Steel 120' | Yes | Large | 117-0237-042 | |||
| Aluminum 120'/132' | Yes | Large | 117-0237-043 | |||

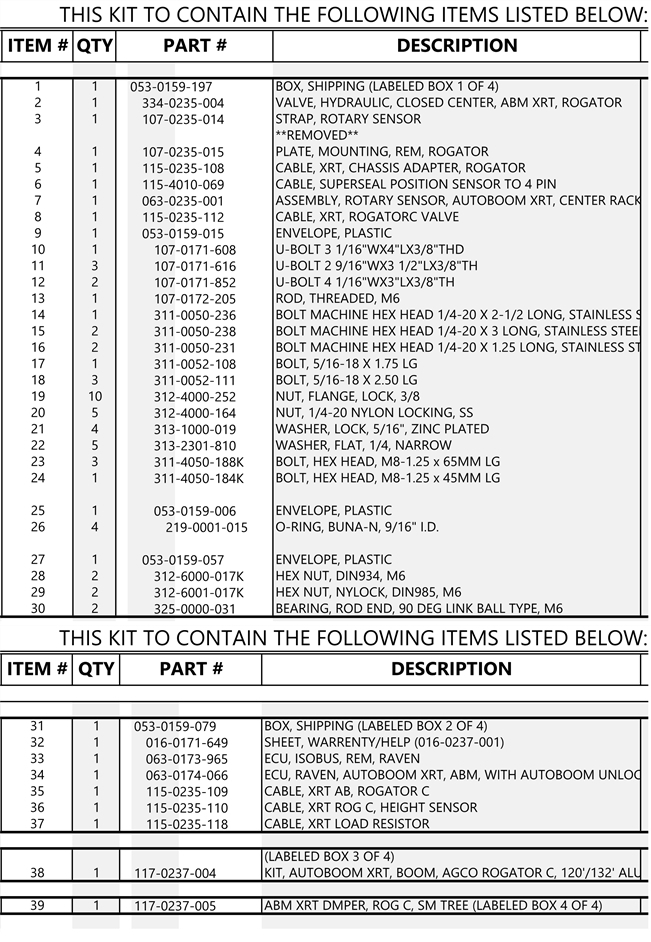

| Small | 117-0237-044 | |||||
| Steel 90'/100' | No | Large | 117-0237-045 | |||
| Small | 117-0237-046 | |||||
| Steel 120' | No | Large | 117-0237-047 | |||
| Aluminum 120'/132' | No | Large | 117-0237-048 | |||
| Small | 117-0237-049 | |||||
| X | X | X | X | X | X | X |

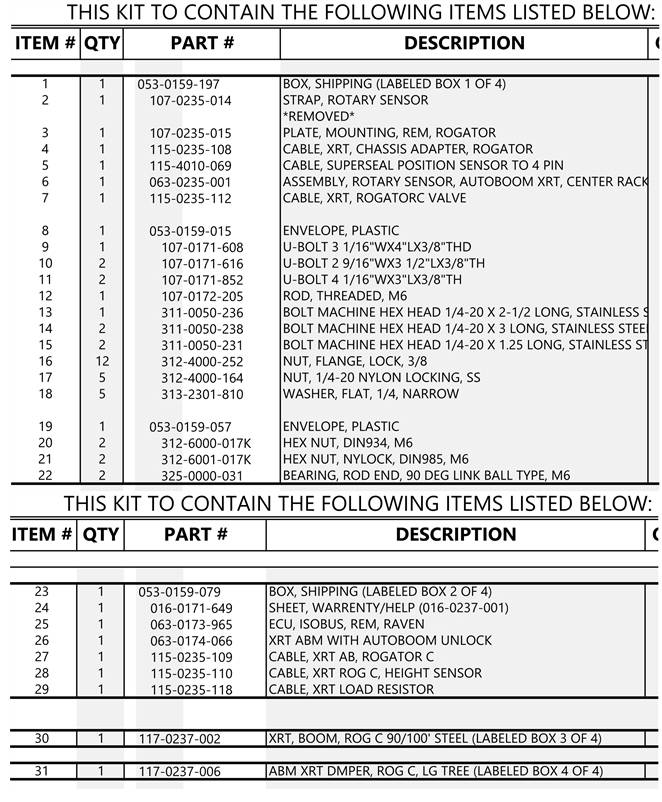

AutoBoom® XRT Kit for AGCO RoGator C, Large Tree, 90’/100’ Steel Boom, No Hydraulics (P/N 117-0237-045 Rev. B)

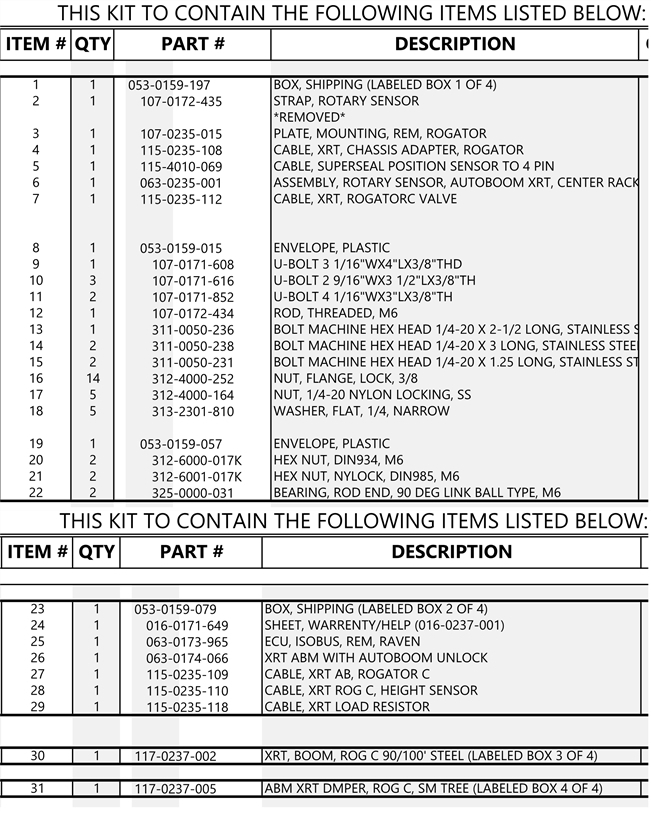

AutoBoom® XRT Kit for AGCO RoGator C, Small Tree, 90’/100’ Steel Boom, No Hydraulics (P/N 117-0237-046 Rev. B)
AutoBoom® XRT Kit for AGCO RoGator C, Large Tree, 120’ Steel Boom, No Hydraulics (P/N 117-0237-047 Rev. B)

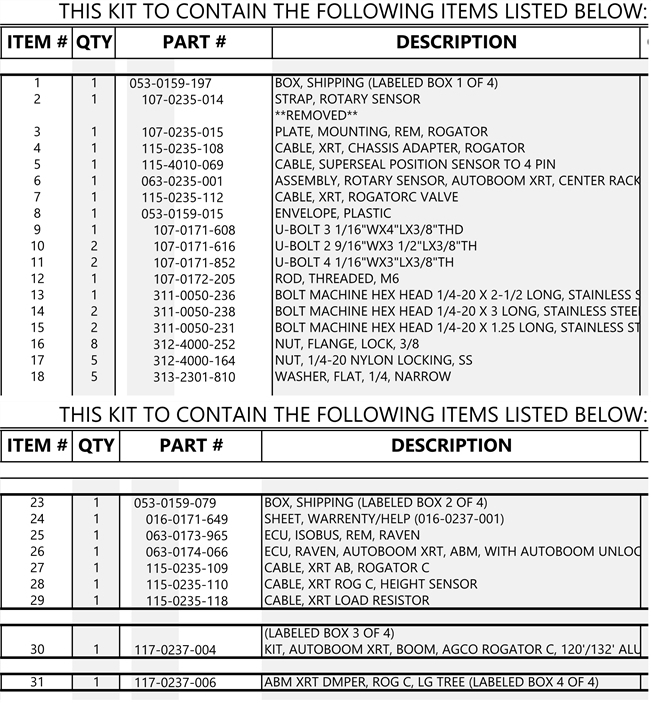

AutoBoom® XRT Kit for AGCO RoGator C, Large Tree, 120’/132’ Aluminum Boom, No Hydraulics (P/N 117-0237-048 Rev. B)

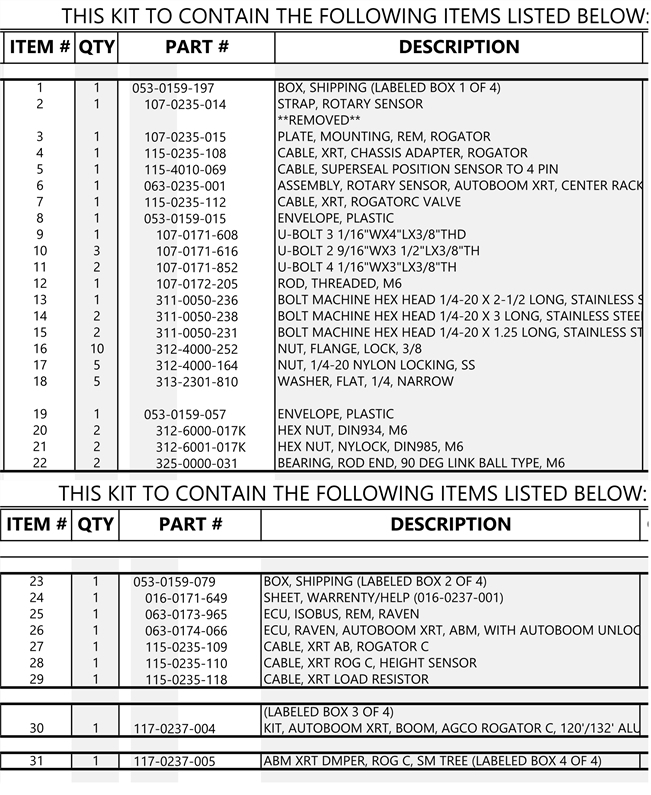

AutoBoom® XRT Kit for AGCO RoGator C, Small Tree, 120’/132’ Aluminum Boom, No Hydraulics (P/N 117-0237-049 Rev. B)
Last Revised: Feb 2025
