ABM and REM Node Installation for TerraGator C

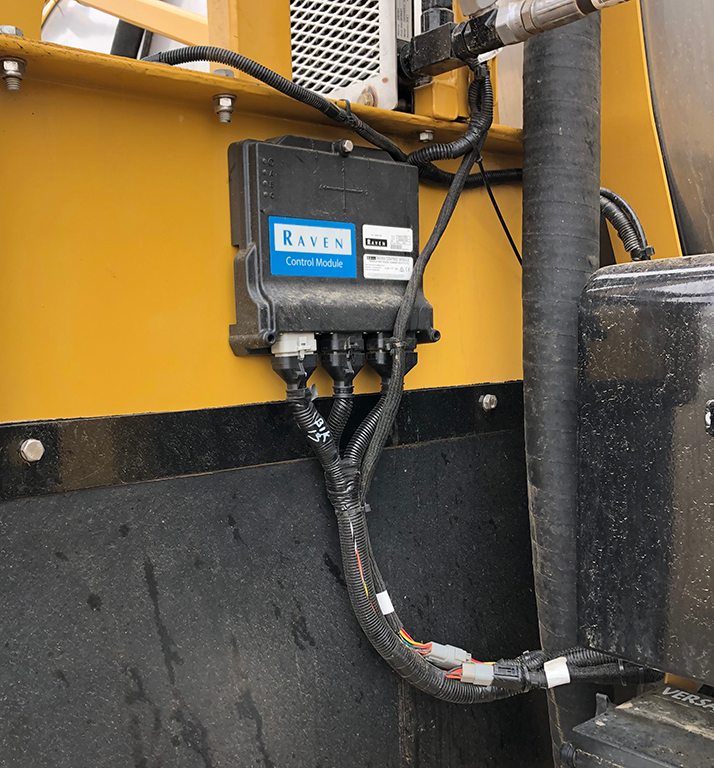

1. Using the provided 1/4”-20 bolts and lock nuts, secure the REM Raven Expansion Module node to the clearance holes on the AutoBoom® XRT node mounting bracket.

   Note:  Mount the node so that the receptacles are facing down.



2. Locate the machine electrical box.

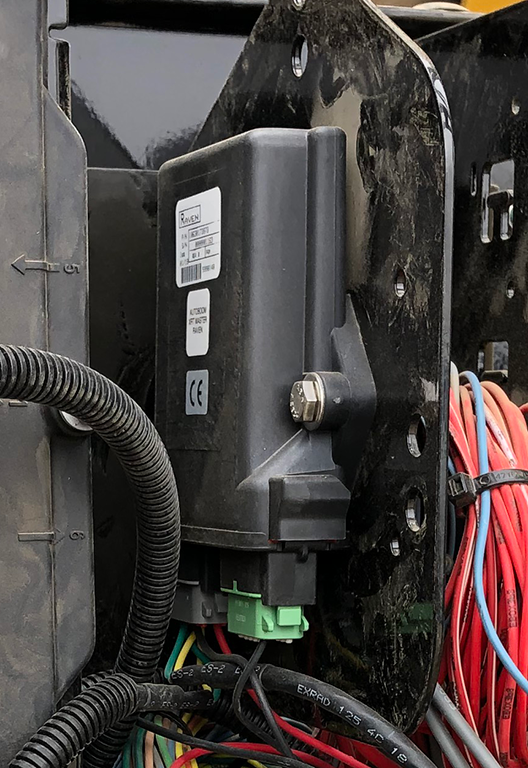

3. The ABM node is mounted inside the electrical node box. Use the provided hardware to mount the ABM node.
