Target Control Effort Test

Accurate base control effort values are necessary for successful advanced tuning. Only perform a Base Control Effort Calibration after warming the hydraulic oil. If possible, engage AutoBoom® XRT and drive slowly for two minutes prior to performing Base Control Effort calibration. This will ensure the Solenoid coils are at operating temperature and will give the most accurate Base Control Effort.

1. Select the Diagnostics icon.

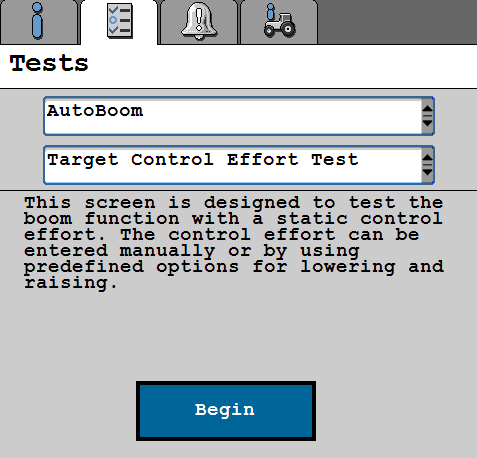

2. Select the Tests tab.

3. Select Target Control Effort Test.



4. Select Begin.

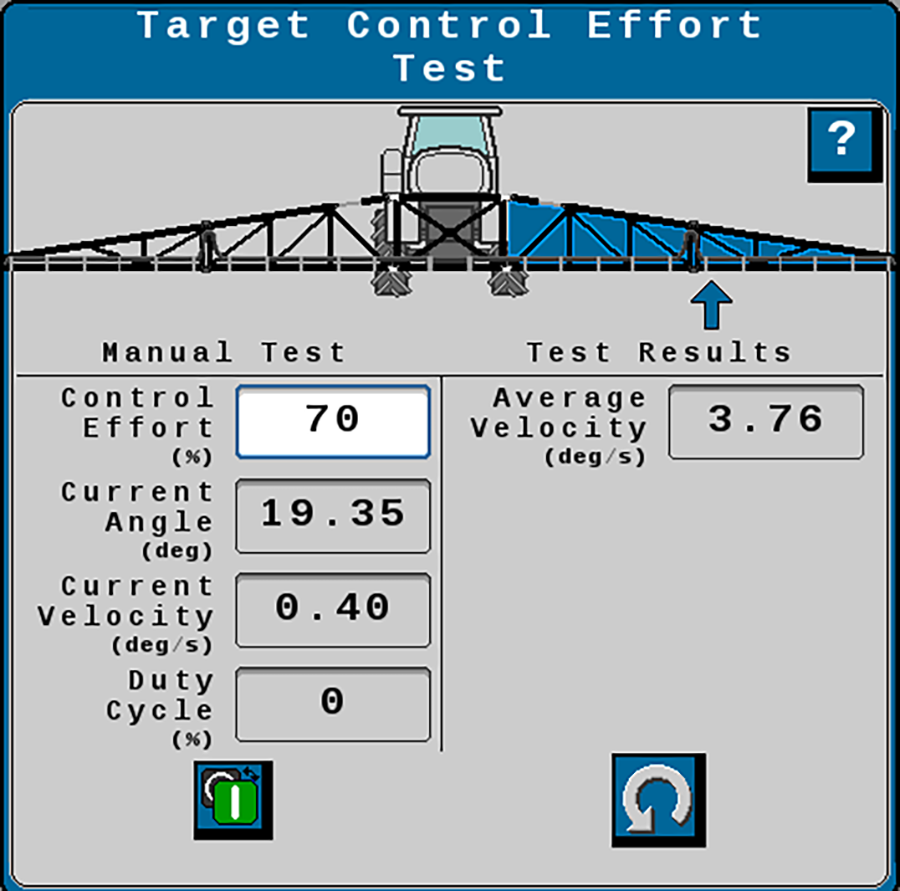

5. If the boom moves up or down, Adjust Control Effort accordingly to result in no or very slow boom movement.



6. Repeat the test until the desired results are achieved.

   Note:  Control effort must be performed on each side of the boom by selecting or highlighting each boom on screen.
