System Drawings

Patriot/Trident

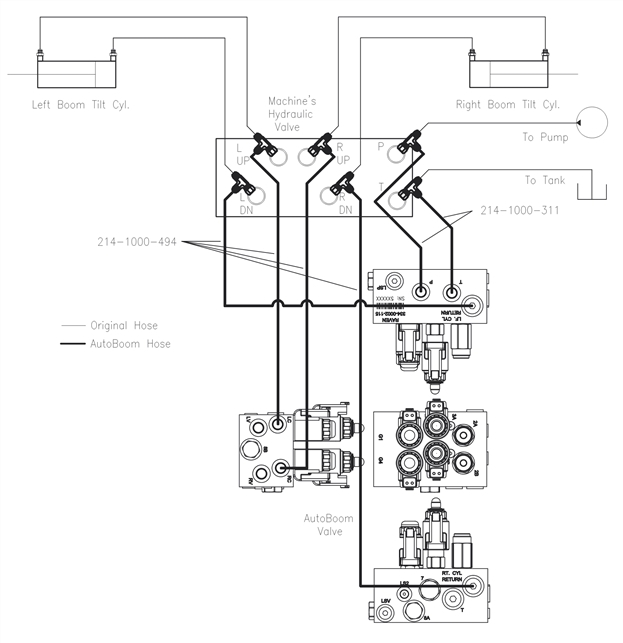

AutoBoom® XRT Hydraulic Drawing (P/N 054-0236-001)

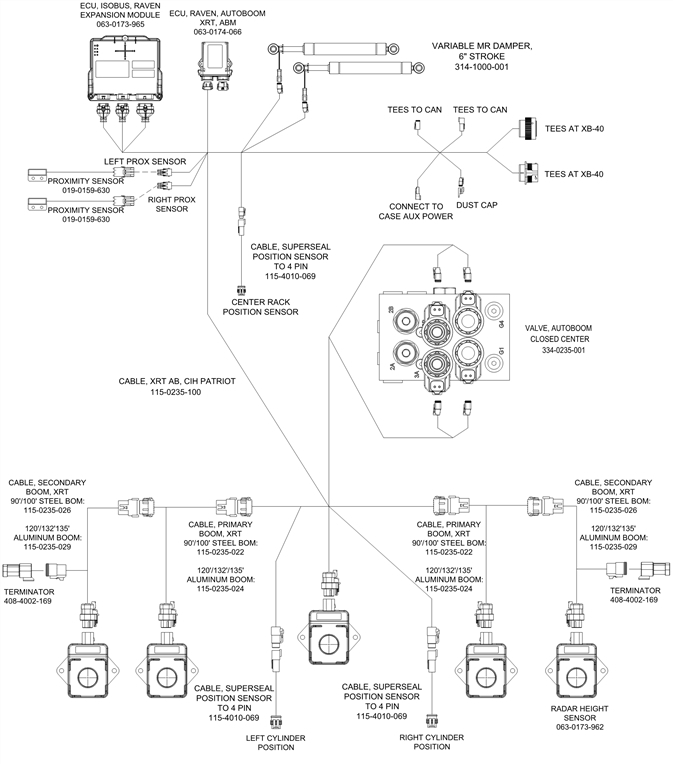

AutoBoom® XRT, Patriot 3XX0/4XX0 90'/100' Steel and 120'/132'/135' Aluminum Cabling (P/N 054-0236-005)

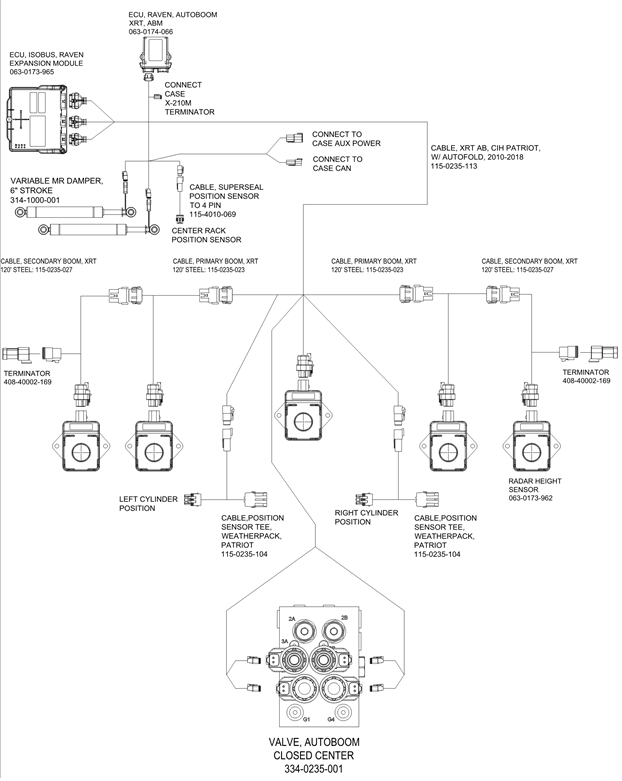

AutoBoom® XRT System Drawing for 120’ Steel Booms (P/N 054-0236-001)

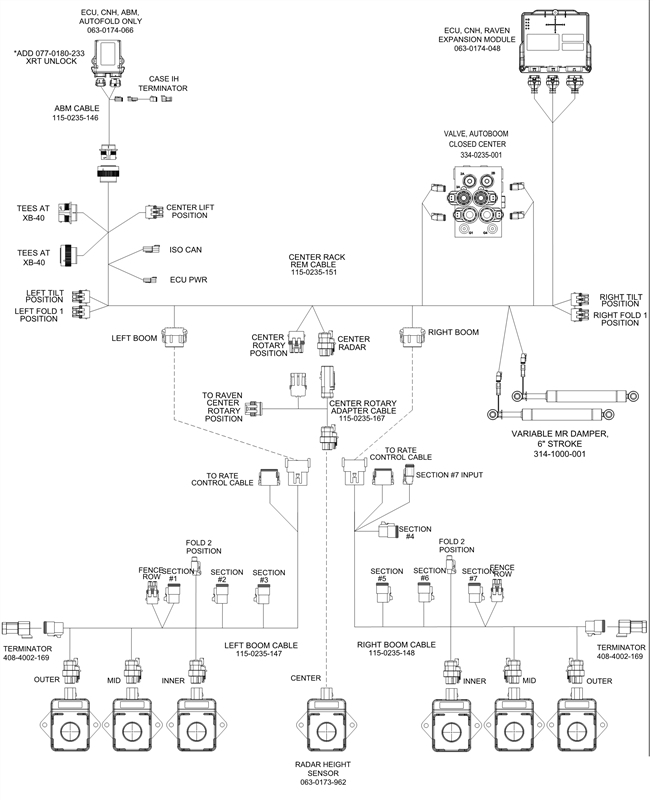

AutoBoom® XRT, Patriot 132’/135’ Aluminum Cabling (P/N 054-0236-005)

RoGator

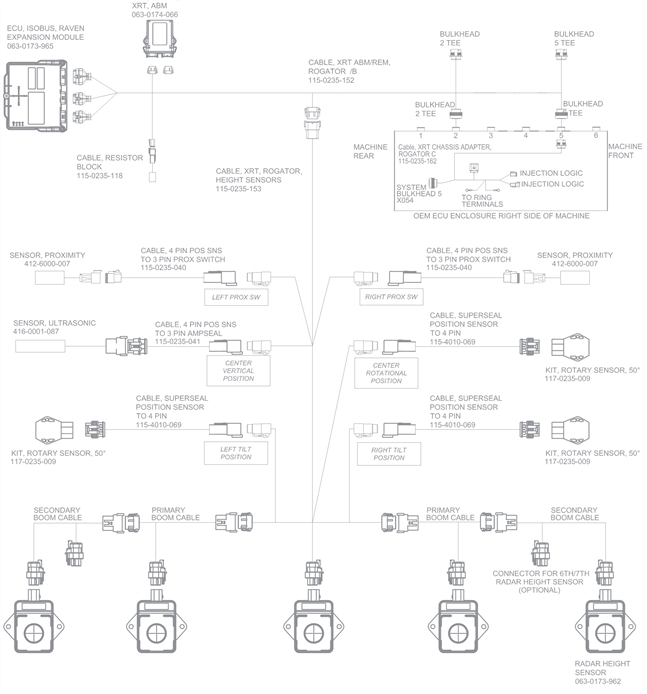

XRT System Drawing for RoGator Series (P/N 054-0237-020-A)

RoGator C

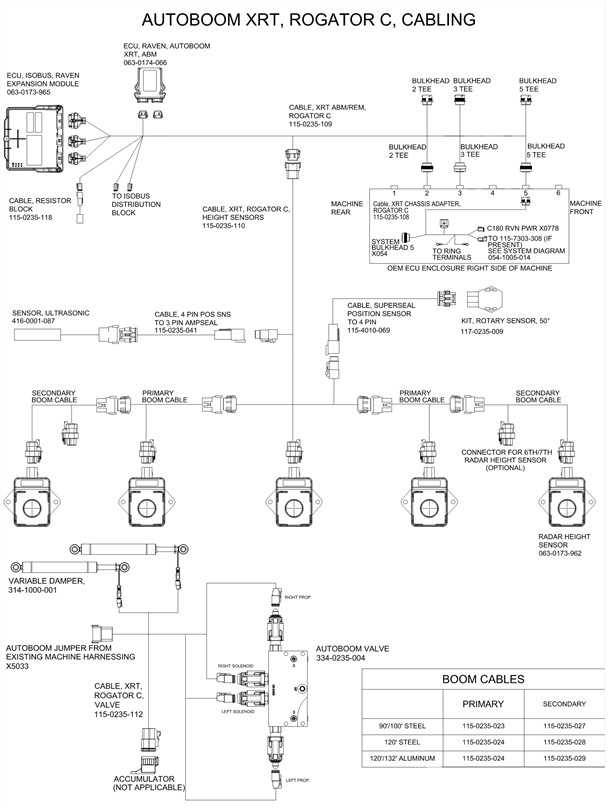

XRT System Drawing for RoGator C Series (P/N 054-0237-040-A)

Fendt RoGator 900 Series

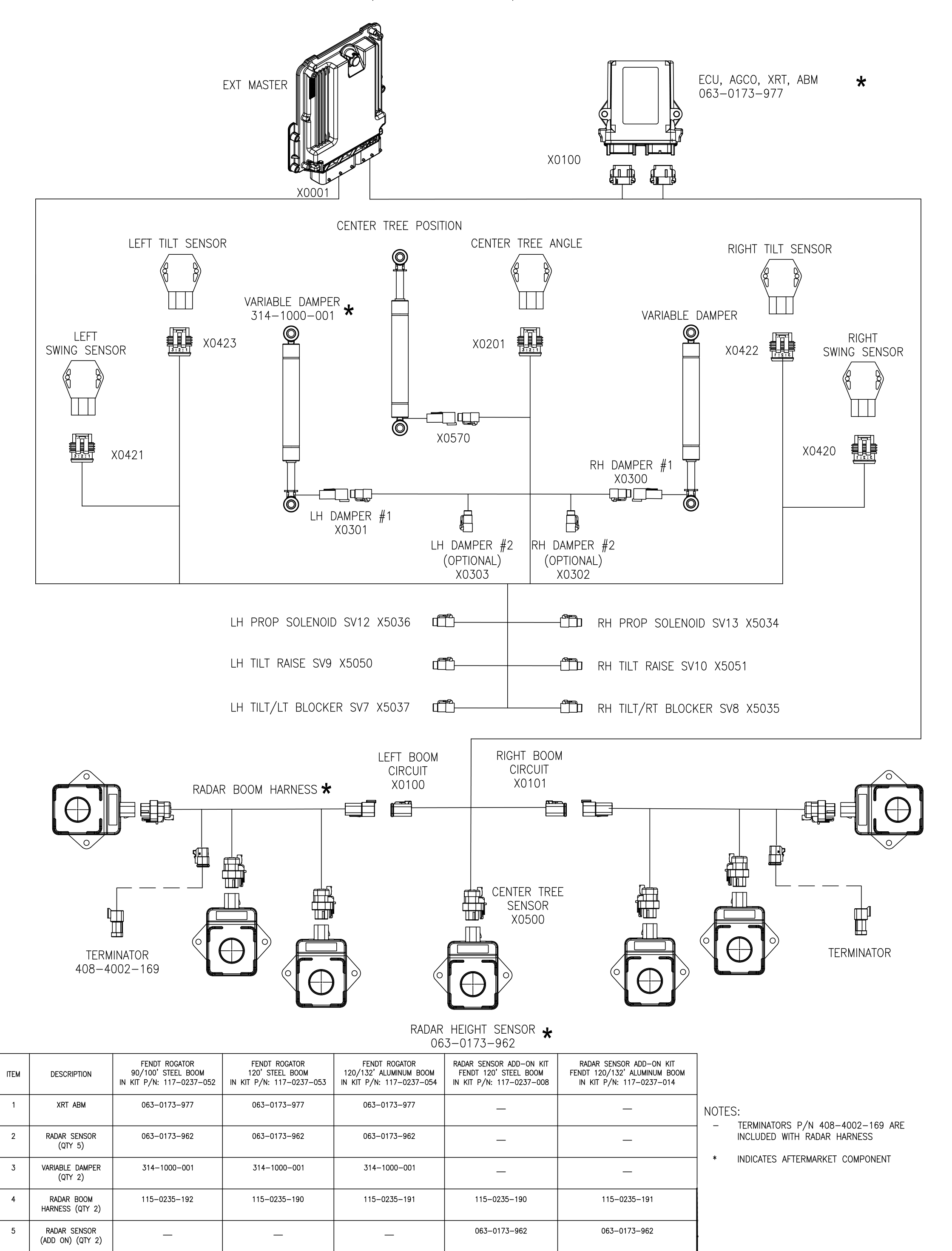

AutoBoom® XRT, Fendt RoGator, Aftermarket Cabling (P/N 054-0237-042 Pg. 2)
