Rotary Position Sensors Specifications

Mounting Location

Mounting location on the center rack:

  • Mount sensor on the fixed portion of the center rack.

  • Mount with linkage hanging down.

  • Arrow on magnet must point to connector.

    • Mid-range of effective reading range.

Mounting location on fold joints:

  • Mount with linkage hanging down.

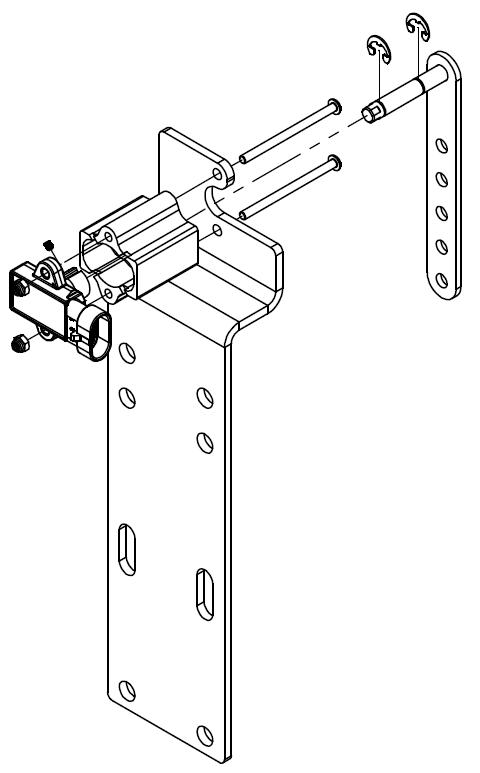

Diagram, engineering drawing Description automatically generated

Protection

Must provide protection for the linkage:

  • Linkage must move freely.

  • Cable must be routed to prevent damage from crops or debris.

  • Cable must be properly secured to avoid interference.

Connector Specifications

AMP Superseal
Pin Description Color
1 POWER Red/white
2 GROUND Black
3 SIGNAL Gray

Sensor Connector Pinout:

  • Supply Voltage: 10 – 30VDC

  • Current: 32 mA max

  • Voltage Output: 0.5 – 4.5 VDC

  • IP Rating: IP69K

  • Amp SuperSeal Connector: 282087-1

Last Revised: Jul 2024
