View Diagnostic Trouble Codes (DTCs)
The Diagnostic Trouble Code screen displays active and previous diagnostic trouble codes (DTCs) that occur during AutoBoom® XRT system operation. Active DTCs must be fixed before the AutoBoom® XRT system can be enabled for operation. Once a DTC
Diagnostic Trouble Code has been corrected, the code moves to the inactive DTC code list.
To view active and inactive DTCs:
-
Select the Diagnostics
button. -

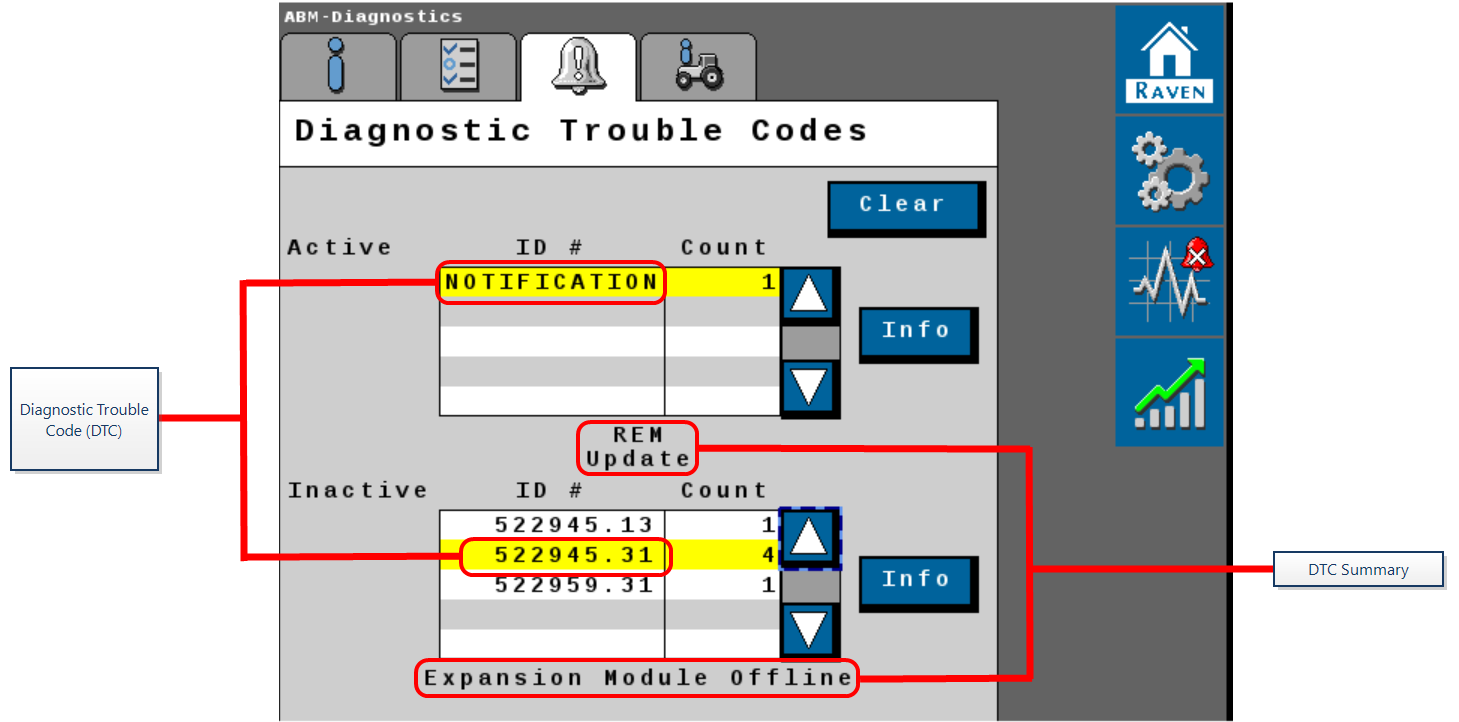

Select the Bell
tab. The Diagnostic Trouble Codes page will display.
-

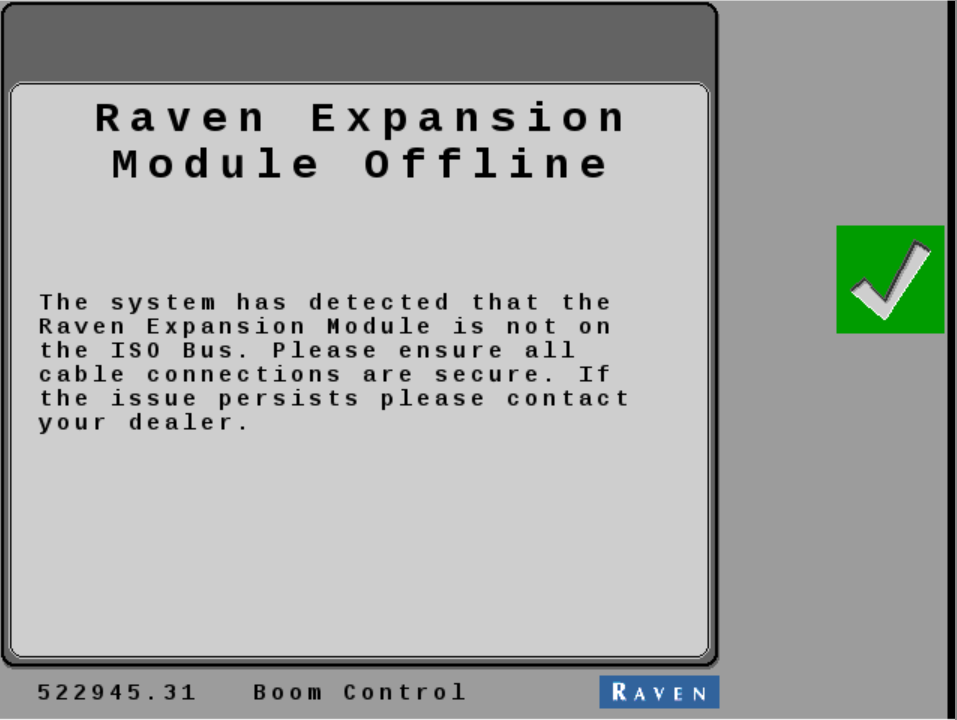

Select the Info button to display the complete description of the highlighted active DTC.
-

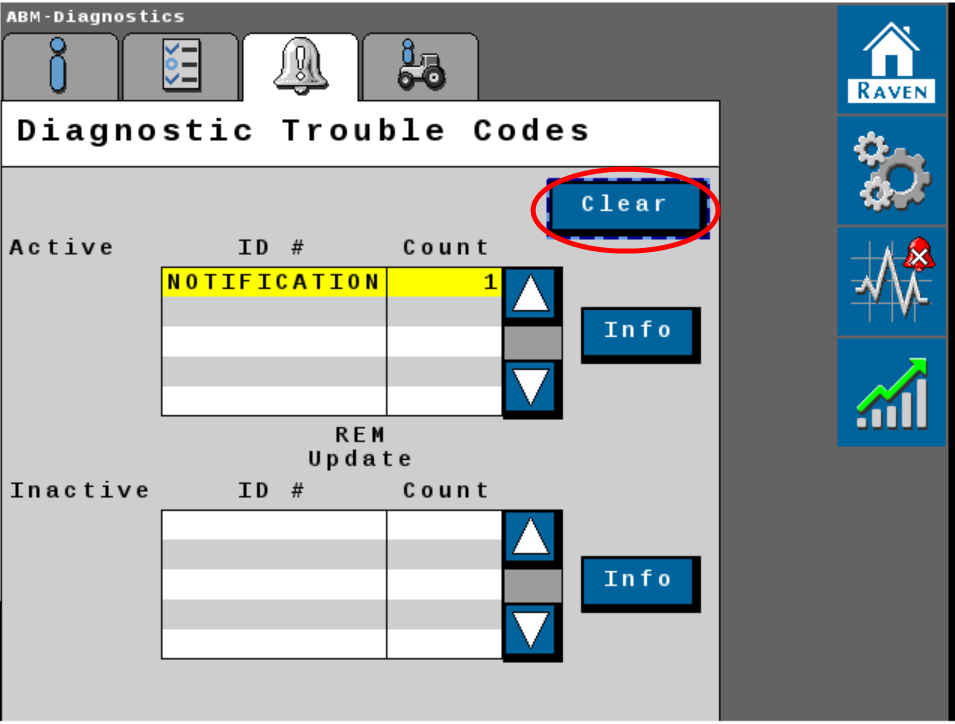

Select the Clear button to delete the inactive DTCs from the inactive DTC error log.
Last Revised: Jul 2024
