Device Specifications

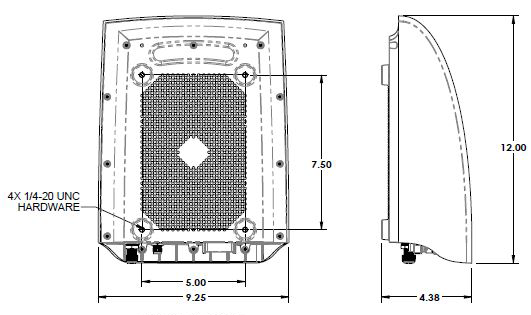

Dimensions

Overall (LxWxH):

• 30.48 x 23.5 x 11.13 cm
• 12 x 9.25 x 4.38 in.

Mounting (LxW):

• 19.05 x 12.7 cm
• 7.5 in. x 5 in.

Power

Operating Voltage (DC): 7 - 28 Volts

Max. Current (7 VDC): 6 Amps

Nom. Current (12 VDC): 1.5 Amps

Environmental

Operating Temperature: -40° to 70° C [-40° to 158° F]

Storage Temperature: -40° to 70° C [-40° to 158° F]

Humidity (relative): 10% - 95%

Environmental Rating: IP67

Connectivity and GNSS Signals

Communication: 2x RS232, 2x CANbus, Cellular, Wi-Fi, Bluetooth®, Ethernet

Method	Band	Transmitted Power (Avg.)	Antenna Gain	Data Rate	How Used
Cellular	LTE B4 (1700)	23 dBm decibel milliwatt	-3 dB	10 MB Down 5 MB Up	Slingshot® connectivity for RTK Real-time Kinematic, file transfer, OTA (Over the Air) Software updates and other information pushed from Slingshot® servers via the Slingshot® system. updates, and diagnostics.
	LTE B13 (700C)	23 dBm	-3 dB
Wi-Fi	2.4 GHz	10.5 dBm	4 dB	54 MB/sec.	Communication to field computer for Slingshot® connectivity/reprogramming, and external user diagnostics.
Ethernet	-	-	-	10/100/1000 MB/sec.

GNSS Global Navigation Satellite System Signals:

• GPS L1, L2, L2C, L5
• Glonass L1, L2
• Galileo E1, E5A, E5B
• Beidou B1, B2
• L-Band
• SBAS

Position Accuracy:

• Single Point L1: 1.5 m
• Single Point L1/L2: 1.2 m
• SBAS: 0.6 m
• Satellite GS 4 cm
• RTK: <2.56 cm

Approvals and Certifications

• CE
• E-Mark - E8 10R-05 9484
• FCC 47 CRF Part 15 Subpart B
• ISED Canada ICES-003 Issue 6

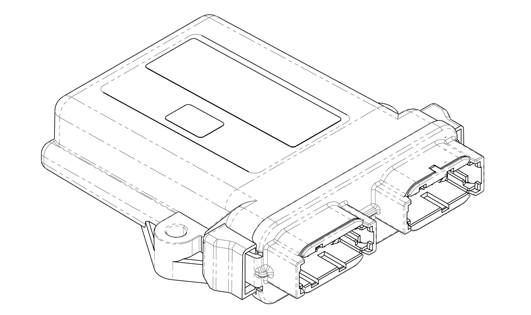

Dimensions

Overall (LxWxH):

13.4 x 11.9 x 3.61 cm [5.26 x 4.70 x 1.42 in.]

Mounting (LxW):

Center-to-center bolt pattern

10.2 cm [4.02 in.]

Power

• Operating Voltage (DC): 9 - 16 V
• Max. Current: 60 mA
• Nom. Current: 120 mA (idle)

Environmental

• Operating Temperature: -20° to 70° C [-4° to 158° F]
• Storage Temperature: -40° to 85° C [-40° to 185° F]
• Environmental Rating: IP67

Connectivity

Communication: ISO 11783 CAN

Approvals and Certifications

• CE
• E-Mark

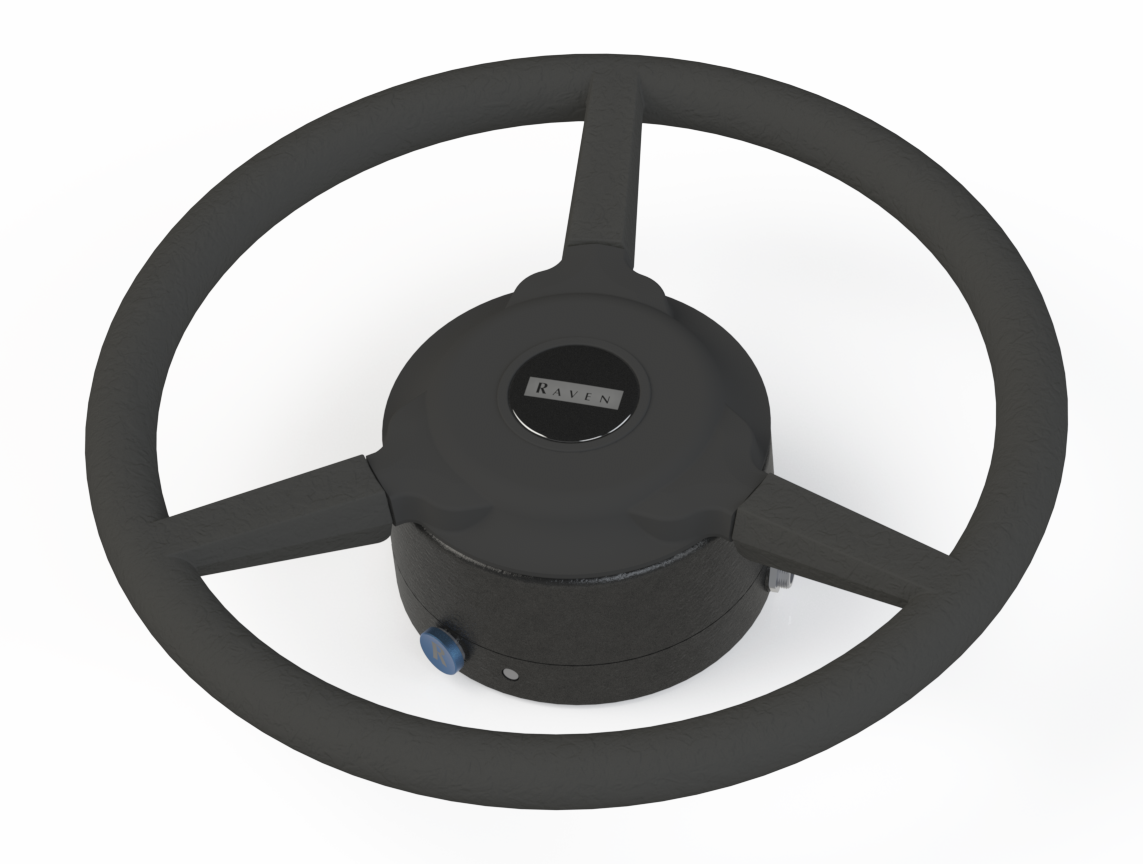

Dimensions

Motor (WxH):

• Ø16.5 cm [6.5 in.] (outer) x Ø 4.05 cm [1.5 in.] (inner) x 8.05 cm [3.2 in.]

• Weight: 5.5 kg [12.1 lbs.]

Steering wheel:

• Ø42 cm [16.5 in.]

Power

• Operating Voltage (DC): 9 - 32 V

Environmental

• Operating Temperature: -20° to 60° C [-4° to 140° F]

• Storage Temperature: -40° to 85° C [-40° to 185° F]

• Environmental Rating: IP65

Connectivity

Communication: RS485, CAN
