Implement or Hydraulic Control Settings (Implement Steering Only)

1. From the auto-steer Home page, select the Tools button.



2. Select the Steering Setup tab.

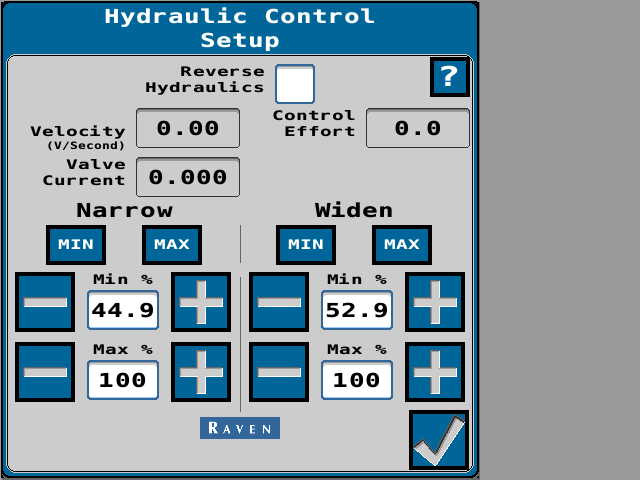

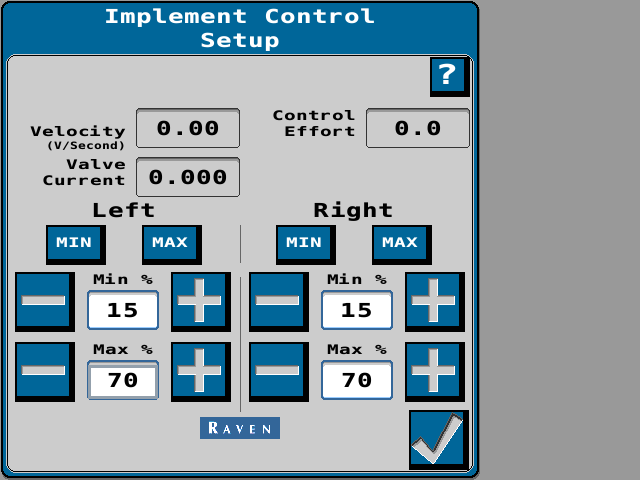

3. Select the Implement Control Settings or Hydraulic Control Settings button. The following information and settings are displayed on the page.



Informational Readouts

The Implement Control Setup or Hydraulic Control Setup page displays the following information:

Note:  Select the Help Menu icon to access the Help Menu. The Help Menu may contain additional information about the features and options displayed on the page.

Velocity or Wheel Velocity

The speed at which the wheels are moving, measured in degrees per second.The speed at which the implement steering actuator is moving, measured in voltage per second.

Control Effort

The amount of effort the system is using to drive the wheels.The amount of effort the SC1™ system is using to drive the implement steering actuator.

Motor or Valve Current

Displays the current (amps) draw of the steering valve or motor.

Reverse Hydraulics

Enable this option if control inputs have the opposite effect on the steering axle or implement actuator. For example, when turning the steering wheel to the left moves the wheels right.

Min and Max Buttons

Touch and hold the MIN or MAX button to test the steering system response. The auto-steer system will use the set minimum and maximum percent values to drive the steering axle or actuators to the left or right (narrow or widen for plough applications).

For example, hold the Left MIN button to steer the machine to the left using the minimum control effort percent.

Minimum Percent

Set the Min % to the minimum value required to move the steering axle or implement steering actuator. Values range from 0 - 99.

Note:  Left and right values may be set independently. The Min values cannot exceed the Max values.

Maximum Percent

The Max % value may be used to limit the control effort which auto-steer system may use to steer the axle or implement steering actuator. Values range from 1 - 100.

Note:  Left and right values may be set independently.

1. From the auto-steer Home page, select the Tools button.



2. Select the Steering Setup tab.

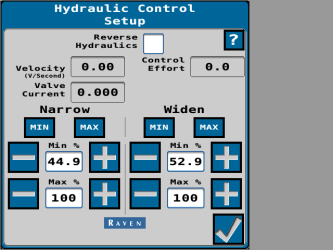

3. Select the Implement Control Settings or Hydraulic Control Settings button. The following information and settings are displayed on the page.



Informational Readouts

The Implement Control Setup or Hydraulic Control Setup page displays the following information:

Note:  Select the Help Menu icon to access the Help Menu. The Help Menu may contain additional information about the features and options displayed on the page.

Velocity or Wheel Velocity

The speed at which the wheels are moving, measured in degrees per second.The speed at which the implement steering actuator is moving, measured in voltage per second.

Control Effort

The amount of effort the system is using to drive the wheels.The amount of effort the SC1™ system is using to drive the implement steering actuator.

Motor or Valve Current

Displays the current (amps) draw of the steering valve or motor.

Reverse Hydraulics

Enable this option if control inputs have the opposite effect on the steering axle or implement actuator. For example, when turning the steering wheel to the left moves the wheels right.

Min and Max Buttons

Touch and hold the MIN or MAX button to test the steering system response. The auto-steer system will use the set minimum and maximum percent values to drive the steering axle or actuators to the left or right (narrow or widen for plough applications).

For example, hold the Left MIN button to steer the machine to the left using the minimum control effort percent.

Minimum Percent

Set the Min % to the minimum value required to move the steering axle or implement steering actuator. Values range from 0 - 99.

Note:  Left and right values may be set independently. The Min values cannot exceed the Max values.

Maximum Percent

The Max % value may be used to limit the control effort which auto-steer system may use to steer the axle or implement steering actuator. Values range from 1 - 100.

Note:  Left and right values may be set independently.
