Wheel Angle and Implement Position Sensor Settings

1. From the auto-steer Home page, select the Tools button.



2. Select the Steering Setup tab.



3. Select the Wheel Angle Sensor or Implement Position Sensor button.



Informational Readouts

The Wheel Angle Sensor or Implement Position Sensor page displays the following information:

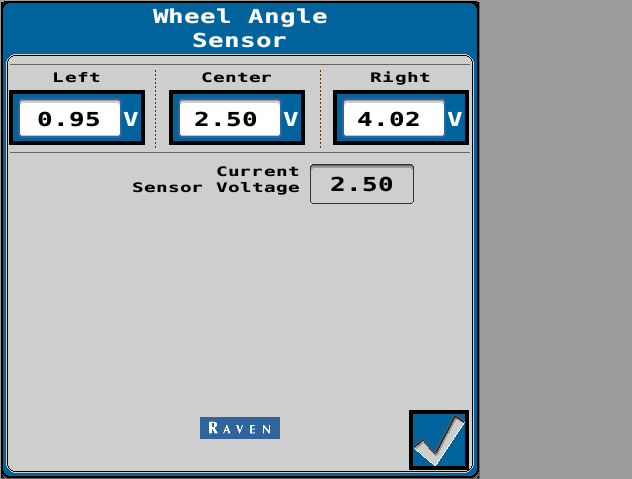

Wheel Angle Sensor Applications

Left, Center, and Right Values

Displays the current sensor voltage set point value for each sensor position.

Current Sensor Voltage

Displays the current voltage of the wheel angle or implement position sensor.

When the operator turns the steering wheel, this value will increase or decrease, depending upon which way the wheel is turned, through the sensor range.

Current Wheel Angle

Displays the current angle of the steer axle.

While driving straight forward, this value should be zero. If the machine is steered to the left, this value will display negative and when steered to the right, this value will display positive.

1. From the auto-steer Home page, select the Tools button.



2. Select the Steering Setup tab.



3. Select the Wheel Angle Sensor or Implement Position Sensor button.



   Informational Readouts

   The Wheel Angle Sensor or Implement Position Sensor page displays the following information:

   Implement Position Sensor Applications

   Left, Center, and Right Values

   Displays the current sensor voltage set point value for each sensor position.

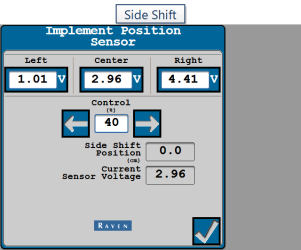

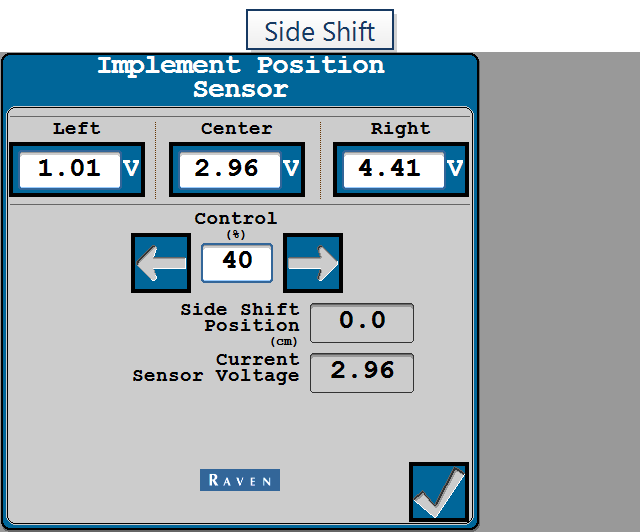

   Side Shift Position

   Current offset distance from the center of the implement.

   Current Sensor Voltage

   Displays the current voltage of the wheel angle or implement position sensor.

   When the operator turns the steering wheel, this value will increase or decrease, depending upon which way the wheel is turned, through the sensor range.

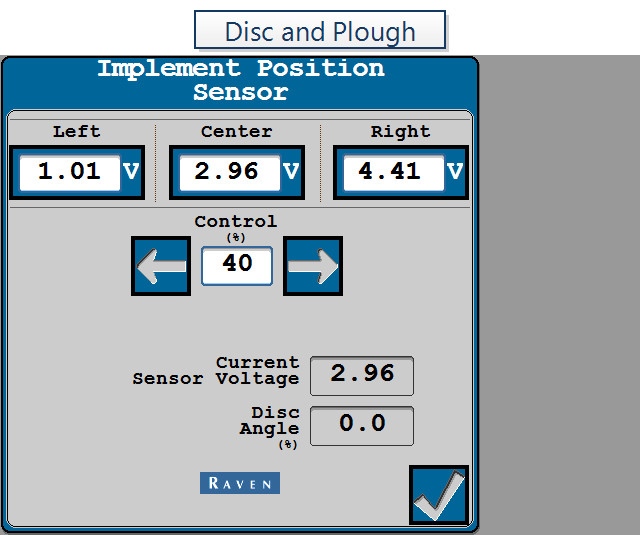

   Disc Angle

   Current disc angle percentage with respect to the calibrated center position.

   Calibrate the Sensor Positions

   To Calibrate the Left Position

   1. Drive the machine forward at 2 - 6 km/h [1 - 4 mph].
   2. Select the Left position button.
   3. Manually turn the steering wheel to the full left lock.
   4. Select the Left position button again to save the new Left position value.
   To Calibrate the Center Position

   1. Drive the machine forward at 2 - 6 km/h [1 - 4 mph].
   2. Select the Center position button.
   3. Manually center the steering wheel to drive straight ahead.
   4. Select the Center position button again to save the new Center position value.
   To Calibrate the Right Position

   1. Drive the machine forward at 2 - 6 km/h [1 - 4 mph].
   2. Select the Right position button.
   3. Manually turn the steering wheel to the full right lock.
   4. Select the Right position button again to save the new Right position value.
