Provision the AFS Vector Pro / PLM Cyngus Output to RS Lite for the Combine

1. Navigate to the GNSS Global Navigation Satellite System and Guidance setup screen under the UT A Universal Terminal (formerly Virtual Terminal) is an electronic display or console capable of interfacing with ECUs on an ISOBUS network. tab.



2. Add a new configuration and name it RCA.



3. Turn off the ISO Can messages.

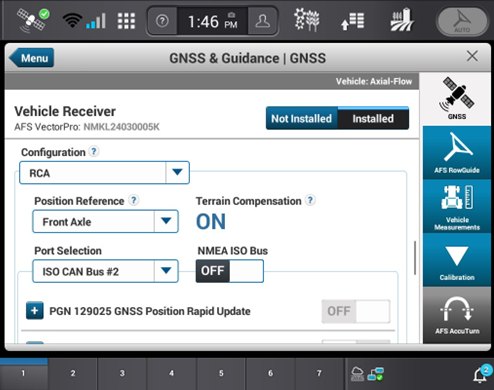

4. Set the port selection to ISO CAN BUS #2 and NMEA National Marine Electronics Association ISO Bus to OFF.

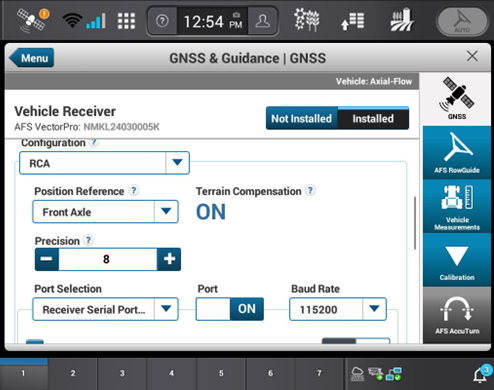

5. Select Receiver Serial Port #1.

6. Set the Baud Rate to 115200.

   Note:  If the Baud Rate appears to be stuck at 38400, leave the setting at 115200 and reboot the system. After reboot verify the baud rate is set to 115200.

7. Set Precision to 8.

8. Set Port to ON.

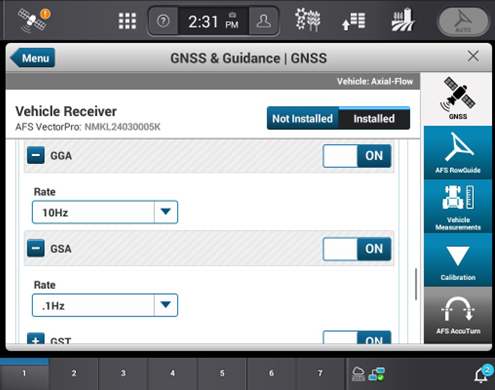

9. Scroll down until the GGA and GSA setup buttons are visible.

10. Set the following settings:

    • GGA - 10Hz

    • GSA - .1Hz

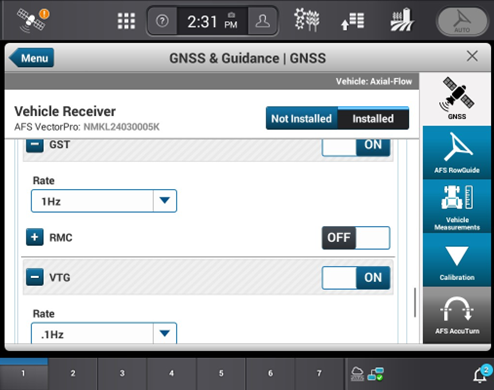

11. Scroll down until the GST and RMC setup button are visible.

12. Set the following settings:

    • GST - 1Hz

    • RMC - Off



    • Scroll down the VTG and ZDA setup are visible.

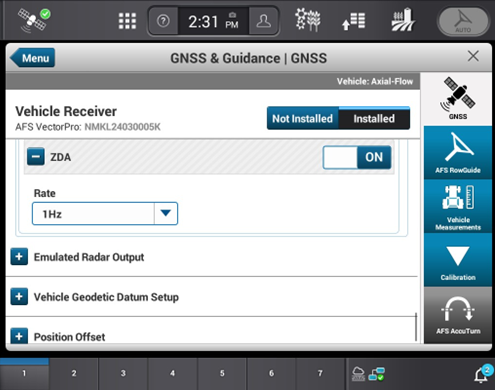

13. Set the following settings:

    • VTG - .1Hz

    • ZDA - 1Hz
