Configure RTK Corrections into the AFS Vector Pro / PLM Cyngus from the Raven Field Hub

Note:  This procedure is only necessary if receiving RTKClosed Real-time Kinematic corrections for the tractor from the Slingshot® Field Hub. Both vehicles should be using the same RTK/RTX network.

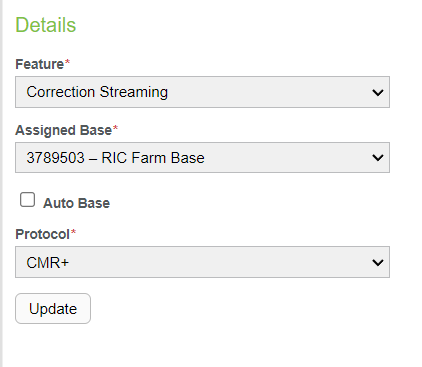

Make sure that the Field Hub is set up to the correct field base station and on CMR+ protocol. Make sure that the serial port of the Field Hub is connected to the RTK In port on the (P/N 115-2612-001) cable.

Setup the Field Hub Correction Profile

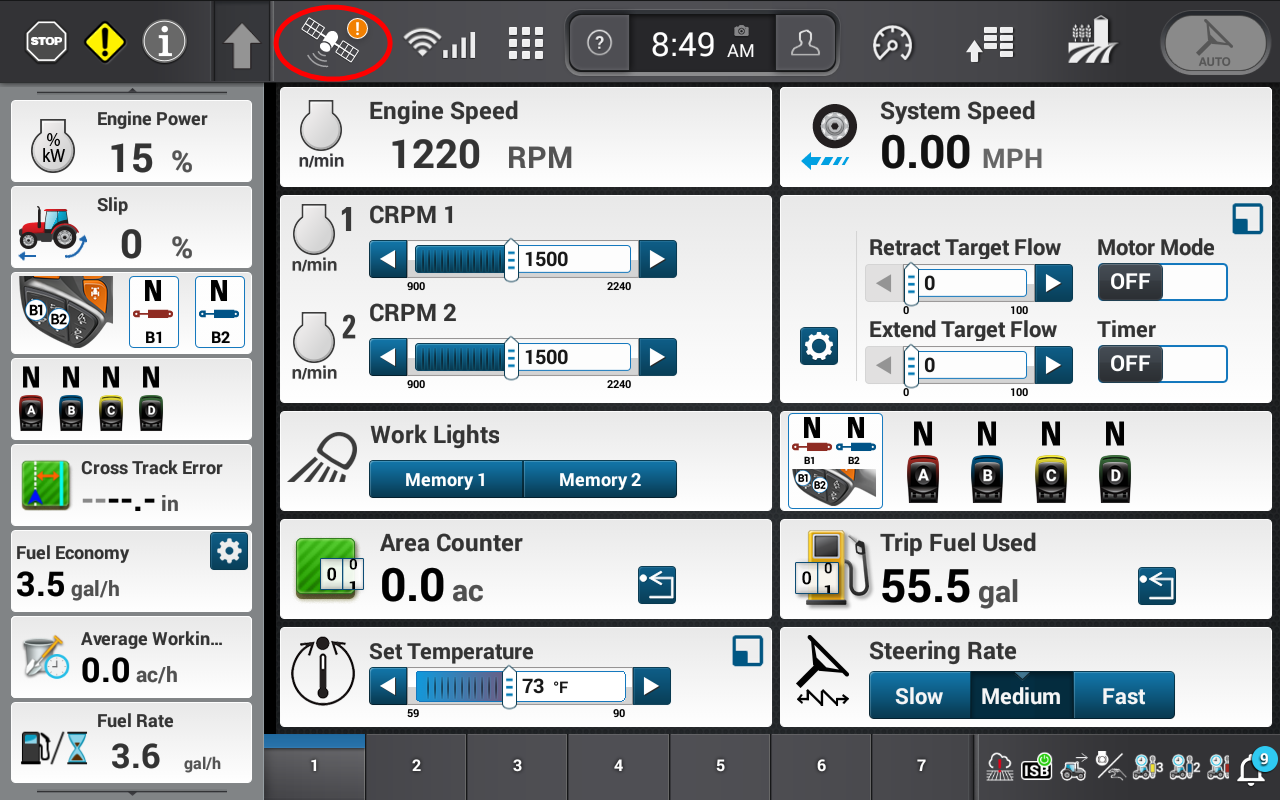

  1. Push the GNSSClosed Global Navigation Satellite System Icon on the home page.

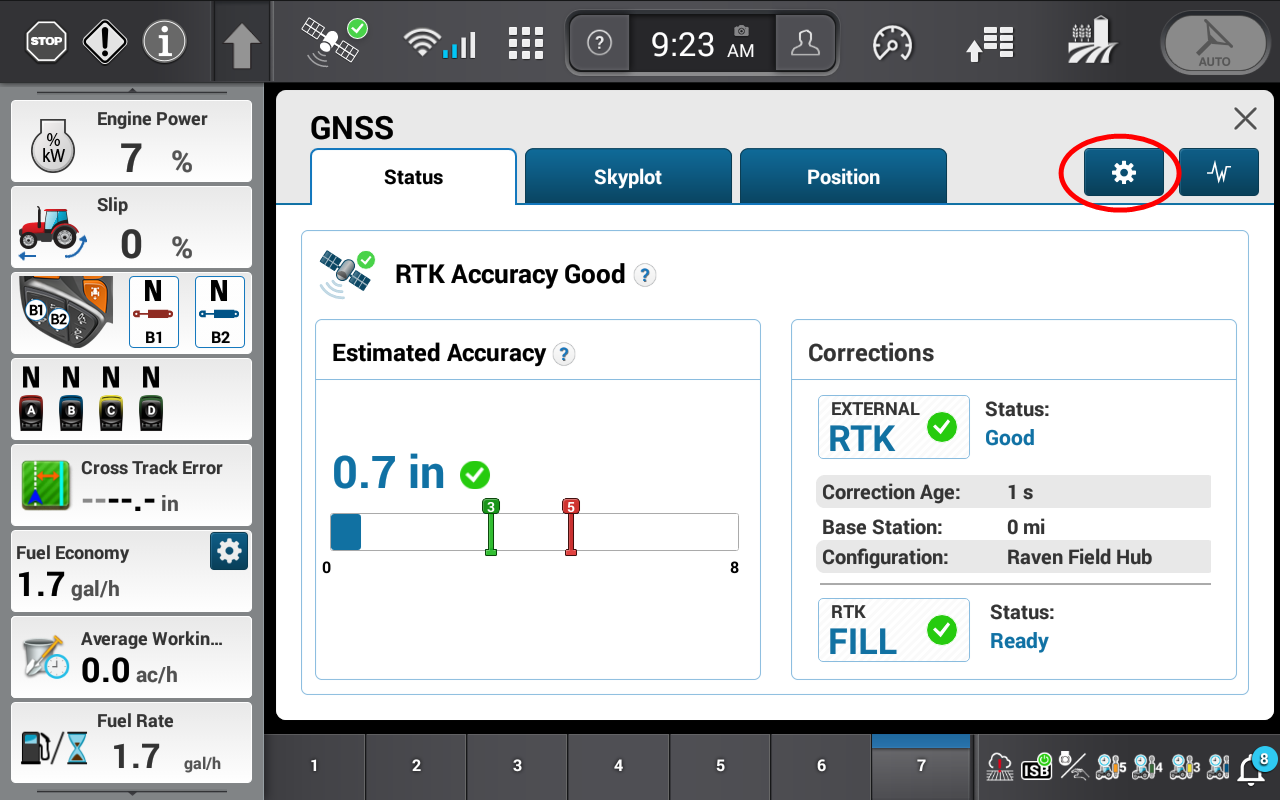

  2. Push the Gear Icon.

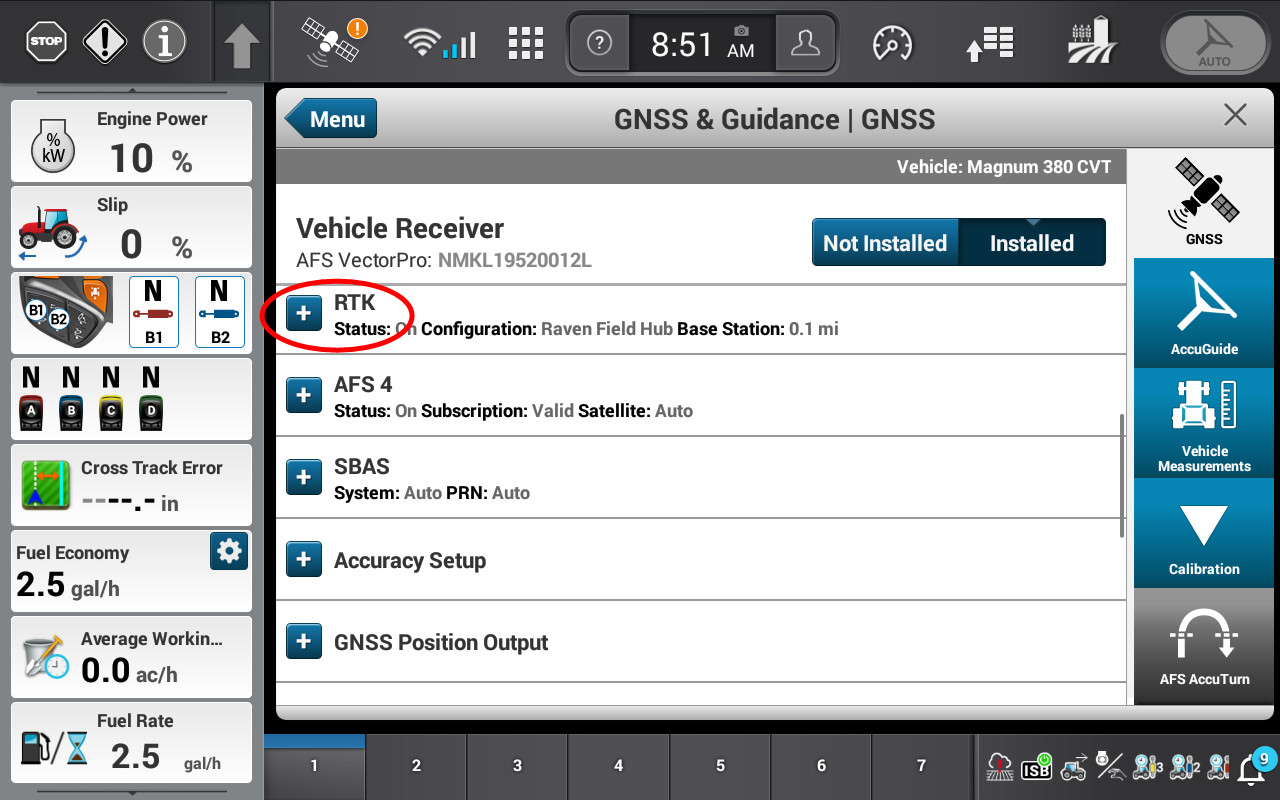

  3. Push the RTK Setup Tab.

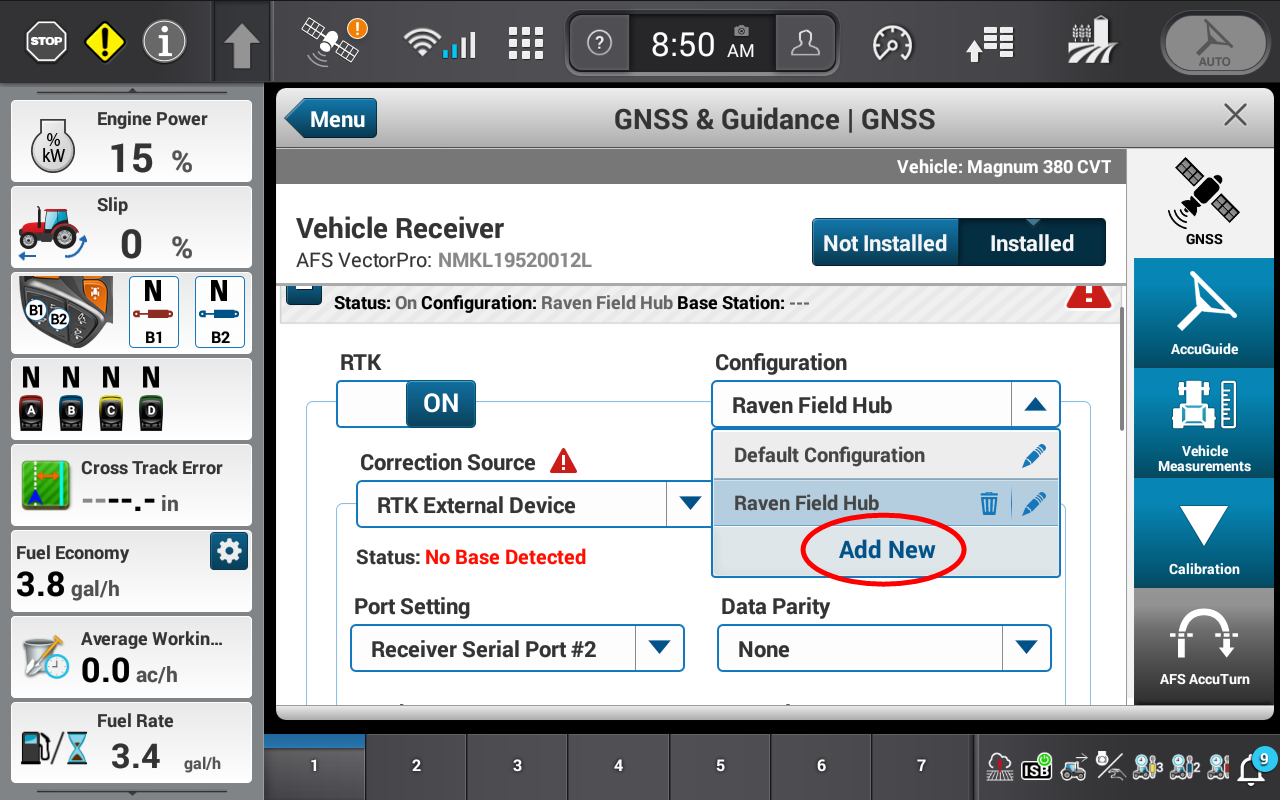

  4. Add a new configuration or edit the current configuration.

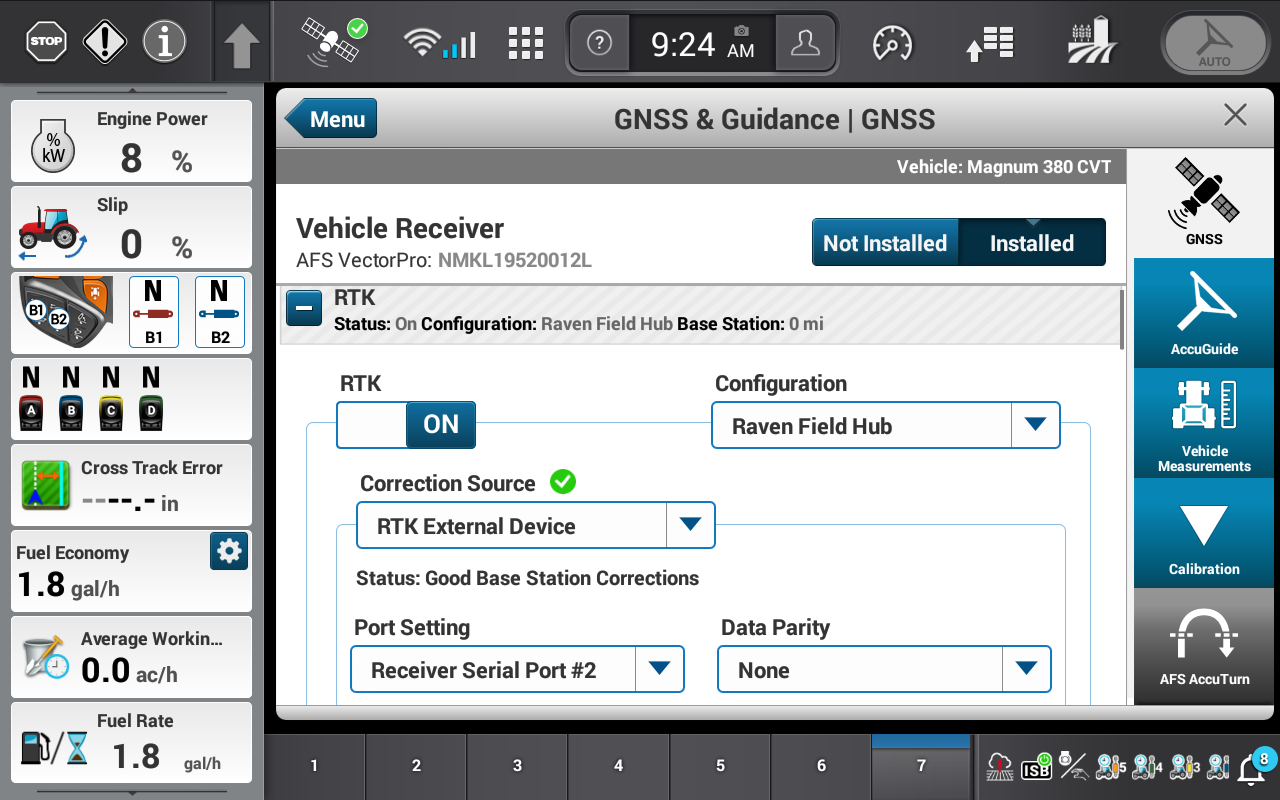

  5. Setup the following RTK settings.

    • RTK - On

    • Configuration - Raven Field Hub

    • Correction Source - RTK External Device

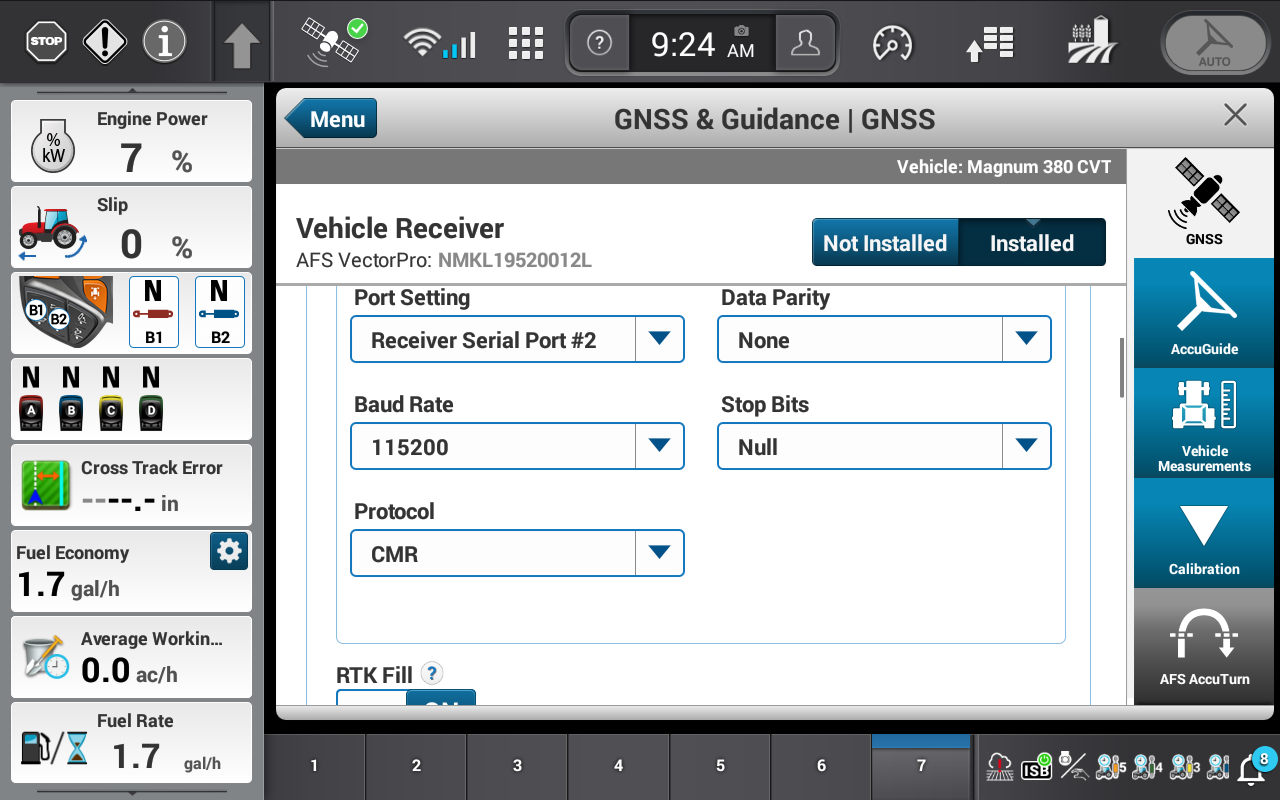

    • Port Setting - Receiver Serial Port #1

    • Data Parity - None

    • Baud Rate - 115200

    • Stop Bits - Null

    • Protocol - CMR

    • RTK Fill - On

  6. Return to the GNSS page and make sure that the CGR is receiving RTK.
