Verify / Update the Tractor to the Correct Datum

Note:  All tractors and combines being used for Raven Cart Automation™ need to be referencing the same datum. NAD83 (NSRS2011) is the default datum for RTX in North America. If you are going to run Raven Cart Automation™ in a different region, you will need to look up the default RTX datum and switch to that datum in the field computer.

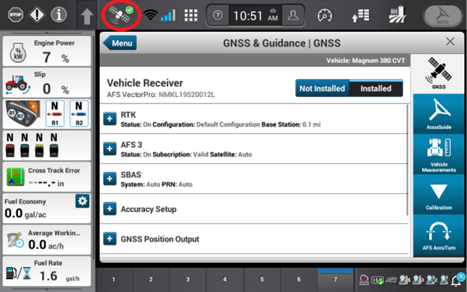

  1. Select the Satellite icon in the top left of the display.

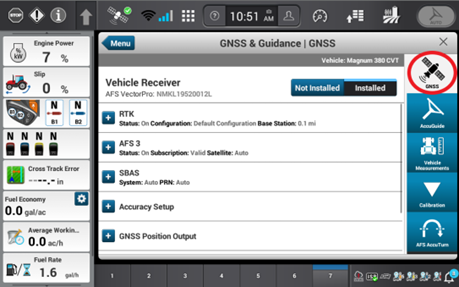

  2. Select the GNSSClosed Global Navigation Satellite System tab on the right side of the screen.

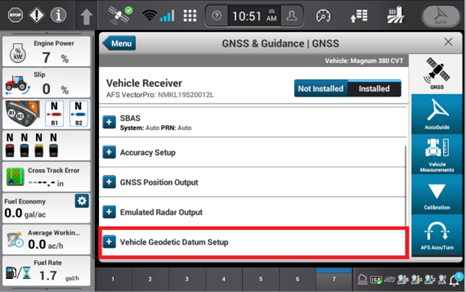

  3. Scroll down until the Vehicle Geodetic Datum Setup bar and select it.

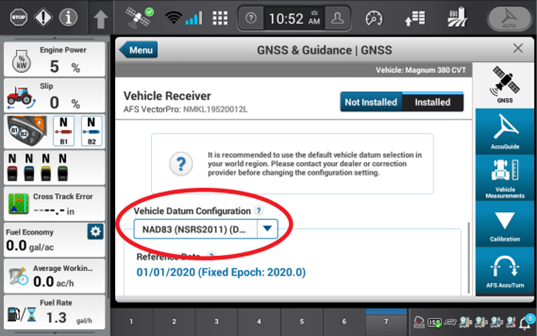

  4. After the Vehicle Geodetic Datum Setup is selected a drop down labeled Vehicle Datum Configuration should be visible.

  5. Verify the machine is on NAD83 (NSRS2011) Datum. If not selected press the drop down and select NAD83 (NSRS2011) Datum.

  6. If using RTKClosed Real-time Kinematic and RTK or AFS3/PLM3 verify that the streaming source is the same.

    • Base Station, Datum, Satellite

Last Revised: Jul 2024
