Tractor Run Screen Overview

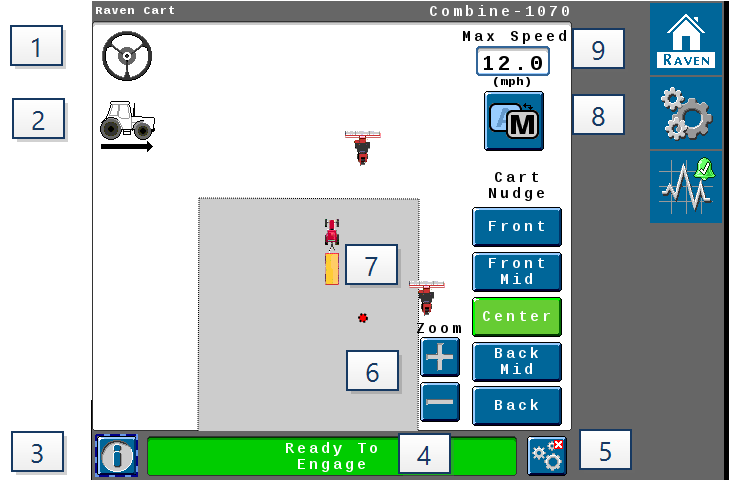

Open the Raven Cart Automation™ user interface.

1. Steering Status

   • Blue - Engaged

   • Gray - Disengaged

2. Propulsion Status

   • Blue - Engaged

   • Gray - Disengaged

   • Green - Speed Hold State

   • Amber - Speed Freeze State

   Note:  Speed Hold is a user-initiated hold while the cart is in sync while speed freeze is the propulsion behavior for user override behaviors.

3. Information

   • If only one tractor is being used for Raven Cart Automation™ select the Information icon to view directional information.

   • In Multi-Machine mode select the Information icon to view the other vehicles on the same radio channel.

4. System Status

   • Error State - An error is preventing engagement.

   • Not Ready - System is not ready to engage.

   • Steering Not Ready (SC1™ not ready) - There is an SC1™ issue preventing engagement.

   • Ready to Engage - System is ready to engage.

   • Acquiring Sync Point - Currently driving to the sync point.

   • Synced - Synced with the combine +/- 1 meter [3.3 feet].

5. Tools

   • Select the Tools icon to view the sync options.

6. Zoom Commands

   • The +/- command zooms in and out of sync window.

7. Sync Point

   • This is the position offset from the combine that the tractor will target when it enters a sync.

8. Automatic/Manual Mode

   • Changes to automatic or manual sync mode when used with multi-machines.

9. Max Speed

   • Used to set the tractor's max speed. Max speed allowed is 24.14 km/h [15 mph]. Default is 19.31 km/h [12 mph].
