Raven Cart Automation™ System Diagrams

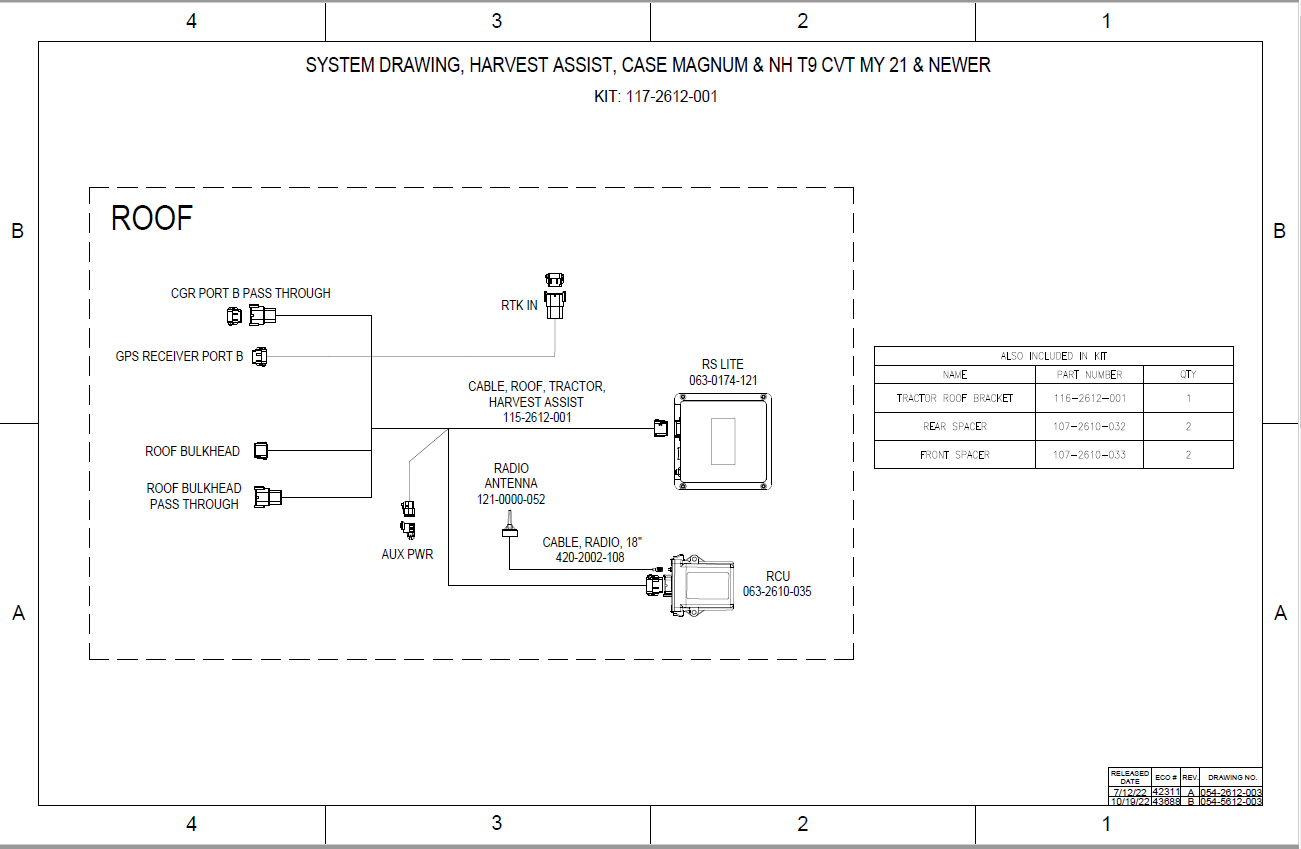

Tractor System Diagram

Combine System Diagrams

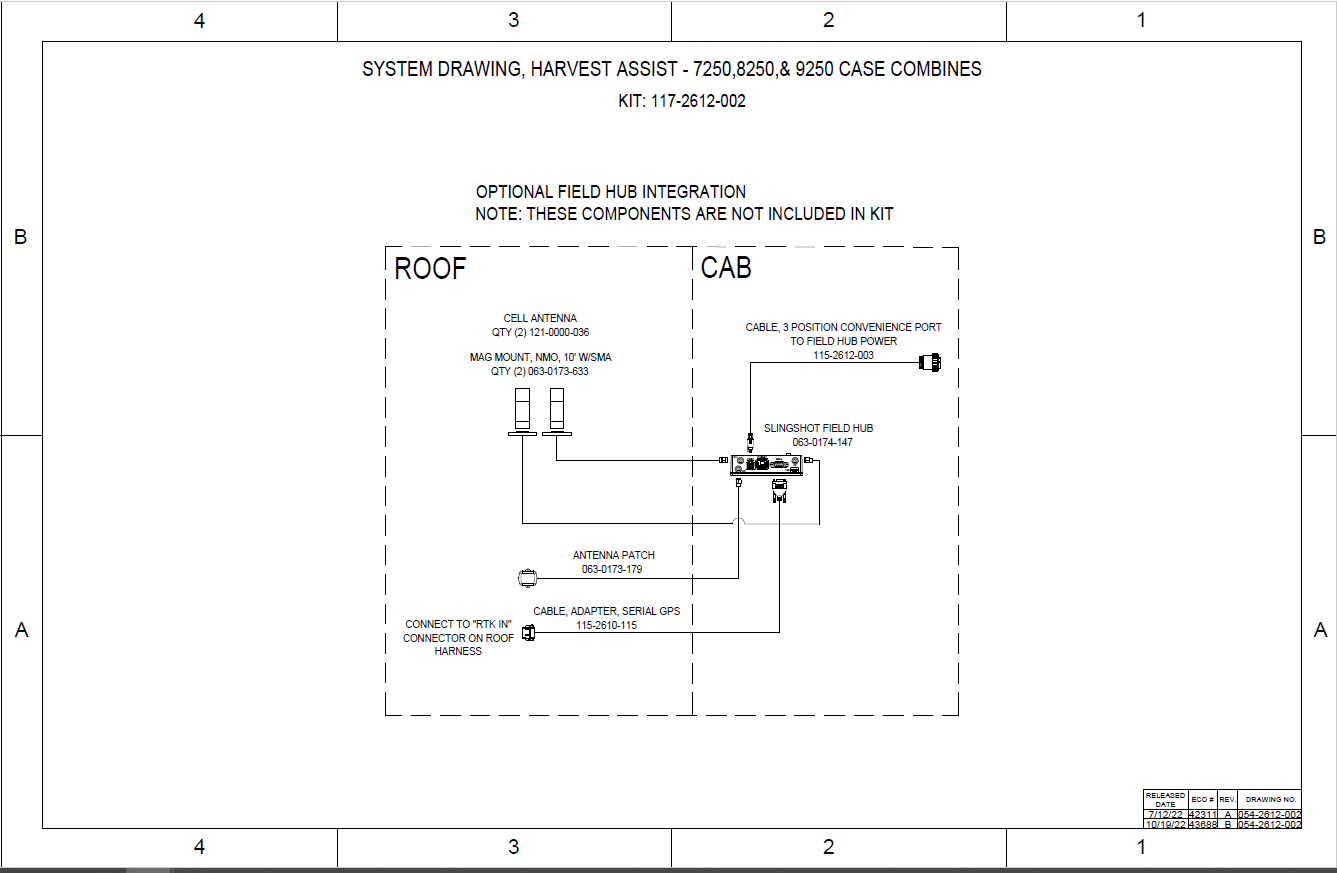

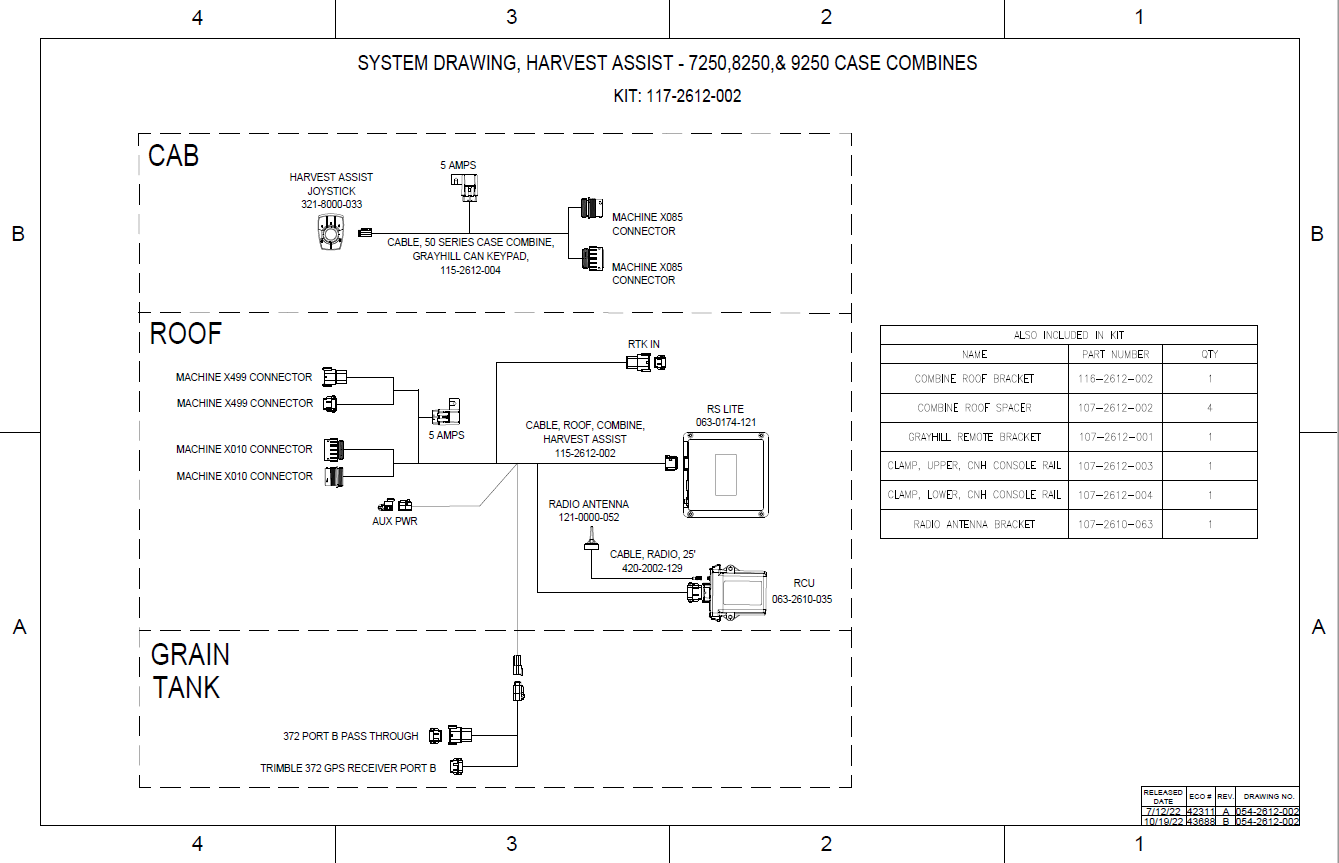

50 Series Combines

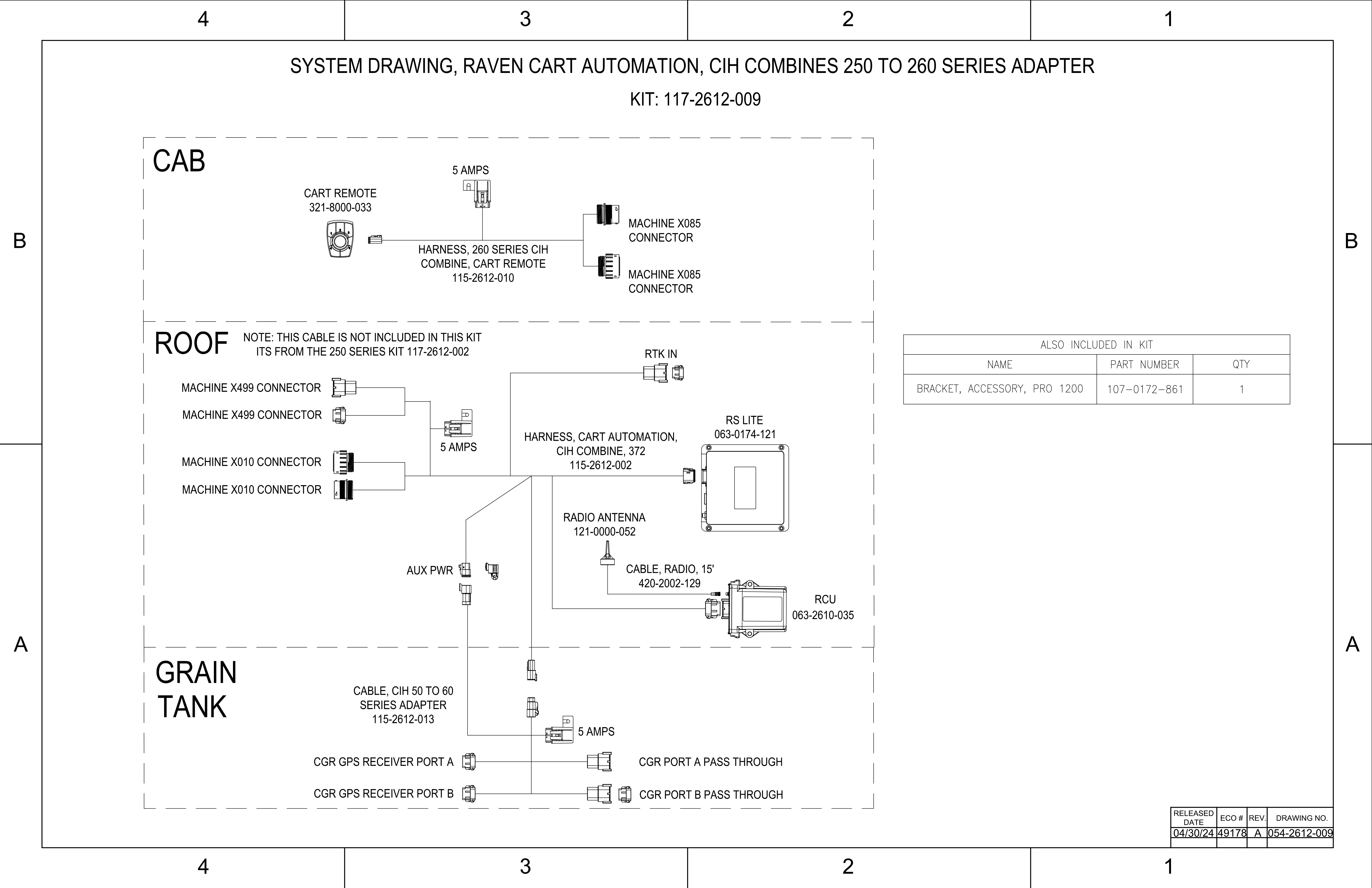

50 to 60 Series Adapter

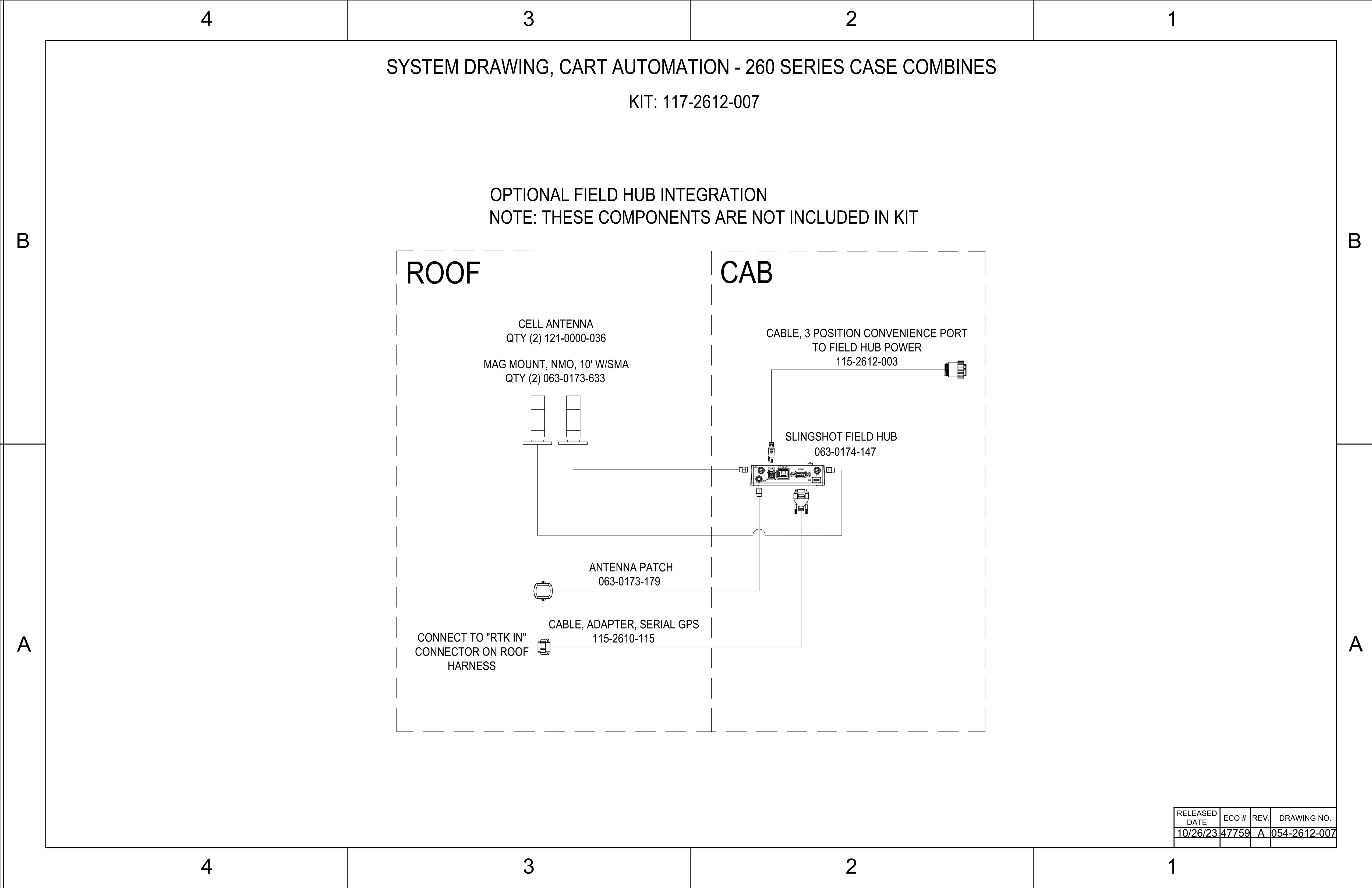

60 Series Combines

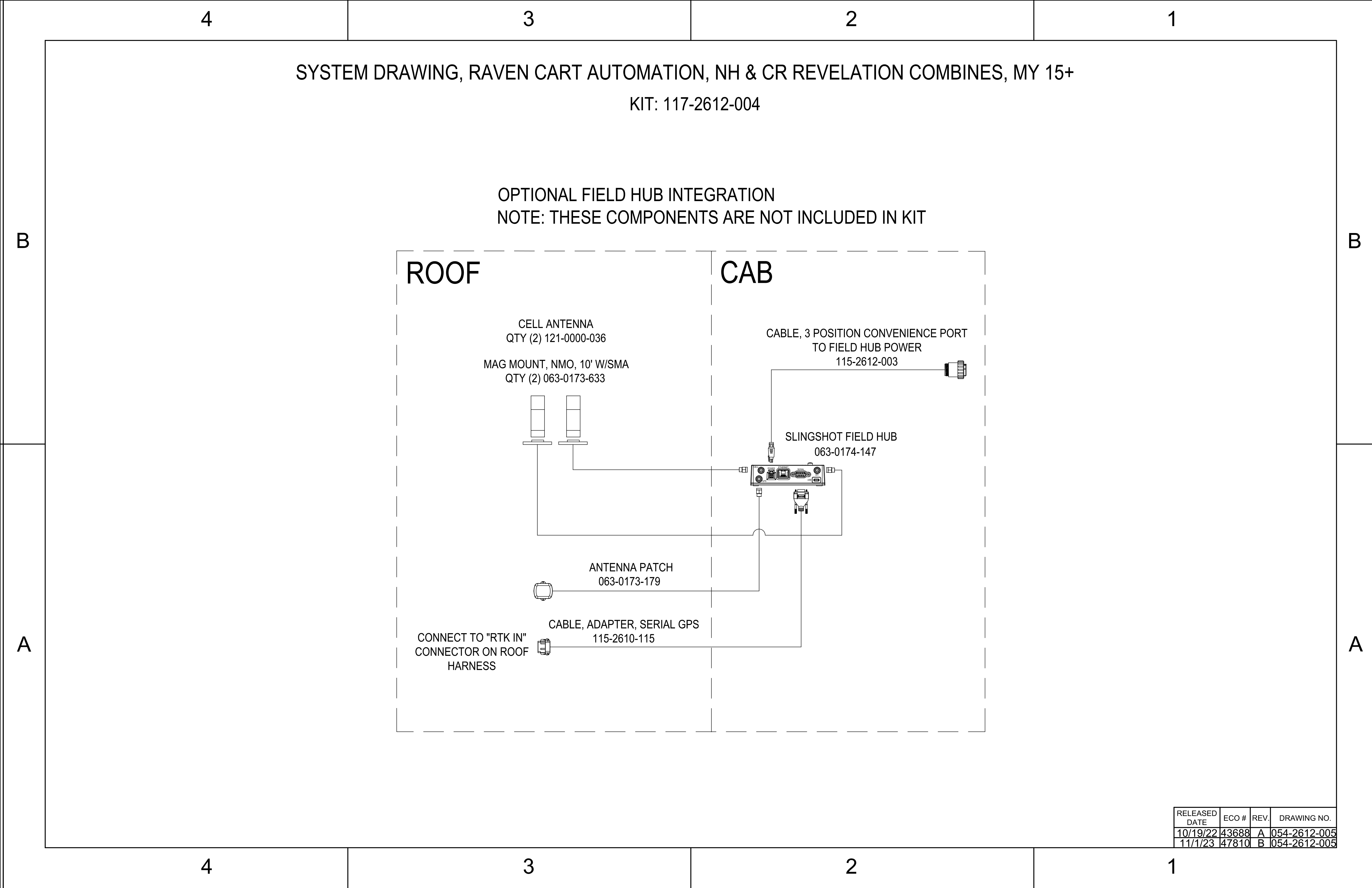

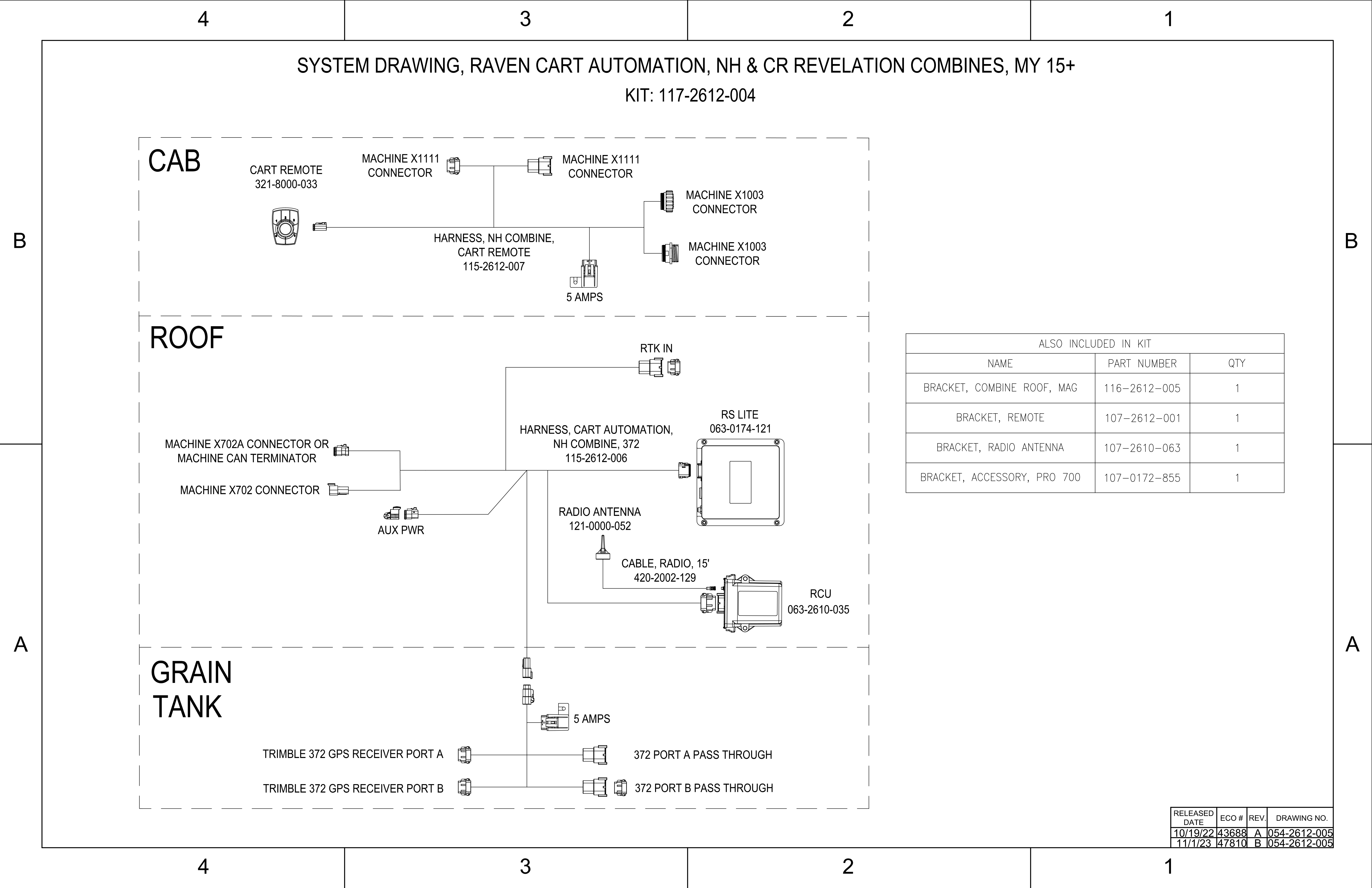

New Holland CR and CR Revelation Combines

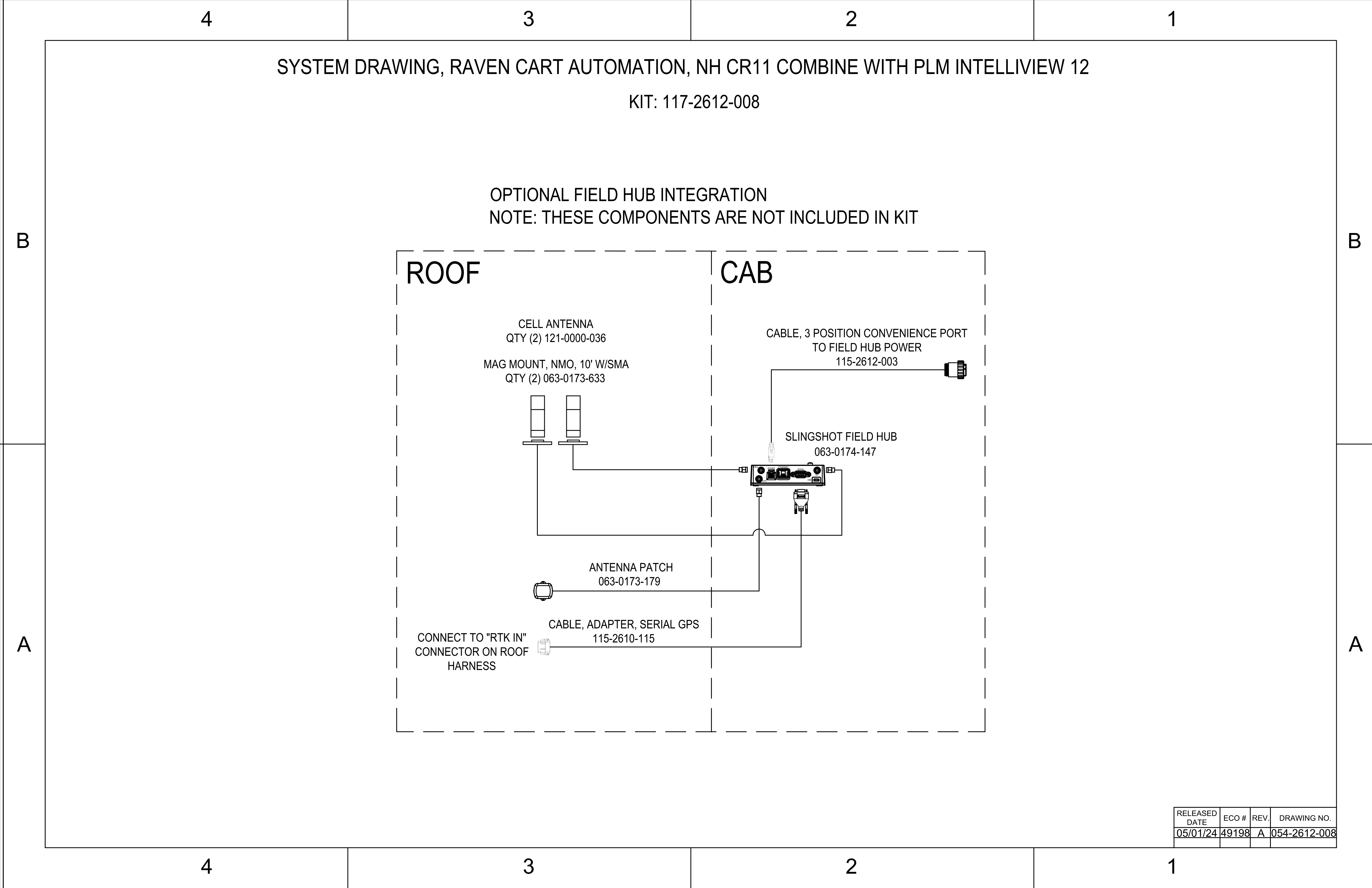

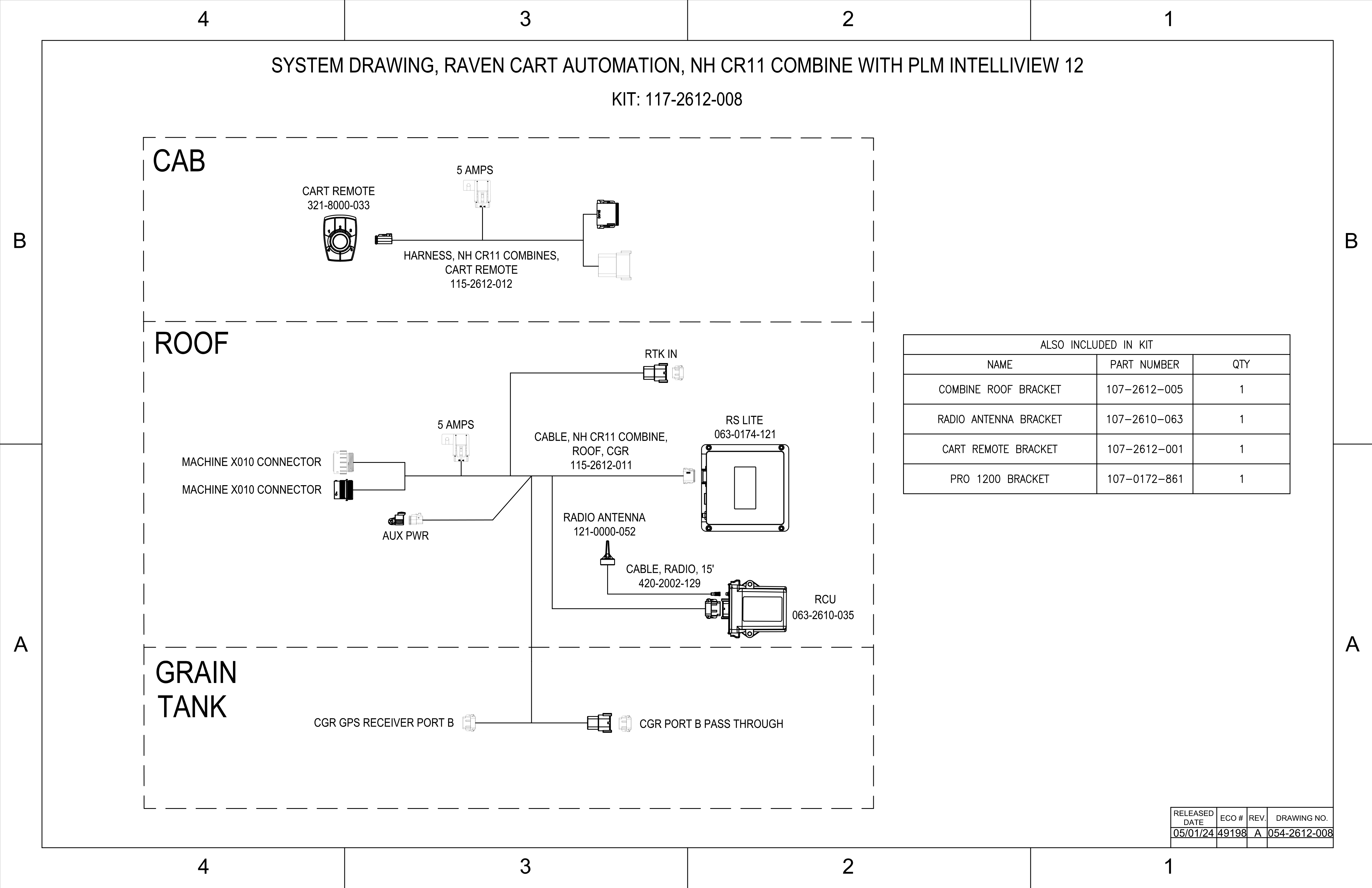

AF9-11 and CR 10-11 Series Combines

Last Revised:Mar 2025
