Installing the Threaded Posts

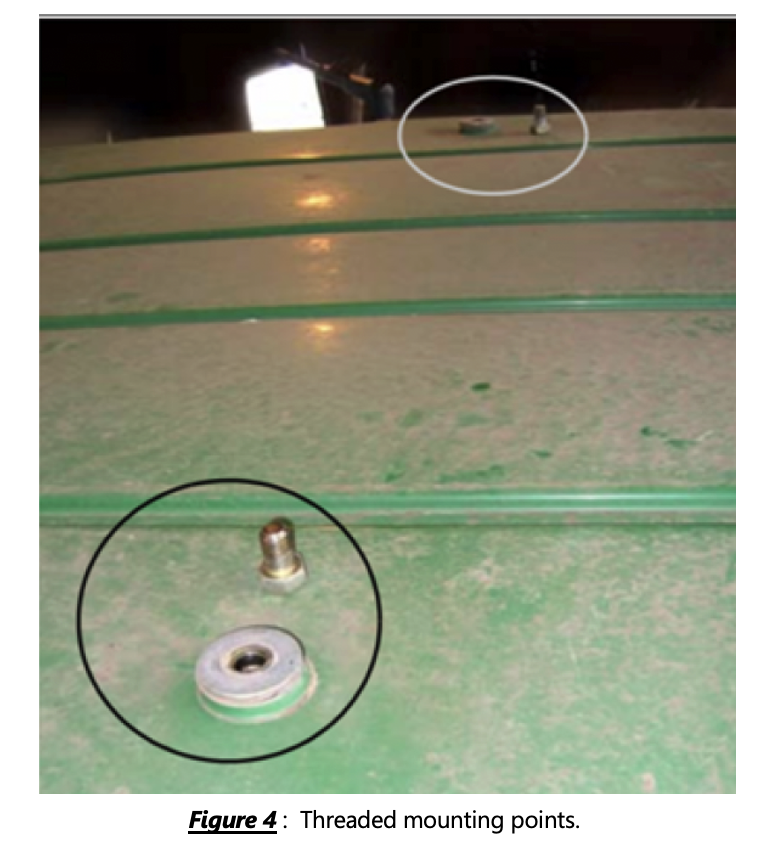

Check if there are any pre-existing threaded mounting points on the tractor’s cabin roof which may be used for Standard Mount installation.
It is generally preferable to use threaded mounting points. However, the distance between the mounting points must not exceed a maximum of 90 cm [35.4 in].
Their threads should be a minimum of M10 and a maximum of M16 in size. Moreover, they must be in a suitably forward position for the Augmenta field analyzer to have an unobstructed forward view.

It is preferable to use pre-existing threaded mounting points, but they must be suitable in size and position:

• A 90 cm [35.4 in] maximum distance between points.

• A thread size between M10 and M16.

• A position forward enough for the device to function properly.

If these criteria are not met, then proceed to Installing with double sided tape. If they are, then proceed to Installing with screws.
